Model No: M684-B
IP68 Waterproof Cable Connector IP68 Outdoor Electrical Lighting System
Wiring Method: Screw Type
IP Rating: IP68
Electrical Rating: 24A 450V
Pins: 2pin/3pin/4pin/5pin
Wire Range: 0.5-2.5mm²
Available Cable Diameter: 4-8mm/6-11mm
Applications: Underwater , Underground, Outdoor Lighting, Solar Systems, Security Systems
IP Rating: IP68
Electrical Rating: 24A 450V
Pins: 2pin/3pin/4pin/5pin
Wire Range: 0.5-2.5mm²
Available Cable Diameter: 4-8mm/6-11mm
Applications: Underwater , Underground, Outdoor Lighting, Solar Systems, Security Systems
minimum order :
1 piece
Subscribe to our Newsletter
Key Features
Stable Outdoor Performance
The M684-B is an ip68 waterproof cable connector designed for reliable outdoor use. As a cable connector ip68 outdoor solution, it performs well in wet, dusty, and harsh environments, making it ideal for outdoor lighting cable connector applications.
Secure Screw Lock Design
This cable connector ip68 outdoor features a screw lock installation, ensuring tight and stable connections. It is widely used as an ip68 waterproof cable connector for long-term outdoor wiring and lighting systems.
Wide Cable Compatibility
Supports M20 cable diameters (4–8mm / 6–11mm) with 2–5 PIN options. This outdoor lighting cable connector provides flexible configurations for different installation needs.
Durable & Heat Resistant
Constructed with UL94V-2 flame-retardant materials, this ip68 waterproof cable connector operates from -40℃ to +105℃, ensuring safe performance in extreme outdoor conditions.
Certified for Global Projects
Compliant with ENEC, CE, UKCA, ETL, NSW, CB, and RoHS standards. This cable connector ip68 outdoor is trusted for outdoor lighting cable connector and various outdoor electrical applications.
Looking for reliable ip68 waterproof cable connectors for your project?
Contact our team today for pricing, samples, or OEM customization. Send Inquiry Now
Contact our team today for pricing, samples, or OEM customization. Send Inquiry Now
Product Parameters
Item | Specification |
Model | M684-B |
IP Rating | IP68 |
Terminal | 2Pin/3Pin/4Pin/5Pin |
| Wiring Method | Screw Type |
Contact Material | Copper |
Housing Material | Fire retardant UL94V-2 |
Rated Output | IEC/NSW: 24A 450VAC ETL: 10A 300VAC |
Rated Connecting Capacity | European: 0.5-2.5mm² Australian: 0.5-2.5mm² American: SJOW 14-18 AWG |
| Available Cable Diameter | M20 (4-8mm/6-11mm) |
Working Temperature | -40℃~+105℃ |
Waterproof Testing | 20m depth for 150 hours |
| Product Size | 98.7*25.1mm |
| Certification | ENEC, CE, UKCA, ETL, NSW, CB, RoHS |
| Applications | underwater, underground, outdoor electrical connection |
Need technical support or samples? We can help you choose the right ip68 waterproof cable connectors. Contact Us for Samples!
Certification

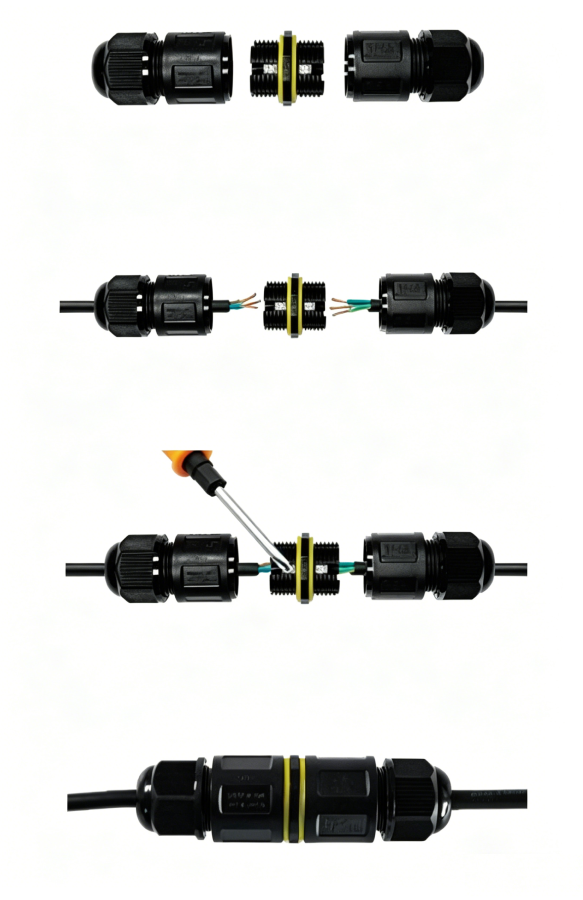

Installation Instructions
Step 1
Unscrew the nut covers on both ends and remove the internal quick connector.
Step 2
Thread the cable through the nut body and lift the lever.
Step 3
Insert the wires into the corresponding terminals and tighten the screw to lock the wires.
Step 4
Tighten the cable glands on both ends to complete the waterproof sealing.
Applications
Outdoor Lighting
Perfect for garden lights, landscape lighting, and backyard electrical systems.
Industrial Installations
Suitable for street lighting, stadium lighting, and outdoor electrical equipment.
Security Systems
Used in outdoor surveillance camera power connections and waterproof electrical boxes.
Solar Systems
Reliable connector solution for solar lighting and photovoltaic installations.
Company Profile
Production Capacity
Equipped with fully automated injection molding machines and assembly lines, delivering a monthly output of 500,000 units.CustomOEM/ODM solutions are supported to meet diverse client specifications.
Quality Assurance
Waterproof testing( 20m depth/150h), high-voltage resistance (2750V),and flame-retardant certification (V0/2 standards). All processes adhere to industrial safety and durability benchmarks.
Warehouse Storage
5000m² warehouse to keep enough materials in stock, ample warehousesize for efficient and speedy shipments, your orders deliveried promptly.
Our Advantages
Service Policy Overview
01 Pre-Sales Support
Technical specifications and product samples are guaranteed to be provided within 24hours, ensuring rapid decision-making for clients.
02 Operational Response
Global 24x7 customer support delivers real-time tech and logistics assistance. Expedite orders ship in 7-10 days via automated production.
03 Post-Sales Warraty
A comprehensive 3-year warranty is offered, coveringnon human-induced defectsin materials or manufacturing.
Product Custiomization Solution
Custom Packaging
Diverse retail-ready designs tailored for supermarkets, hardware stores,and bulk distribution.
OEM Branding Services
Professional private-label manufacturing with precision logo imprintingfor brand identityenhancement.
Functional Expansion
Flexible integration of modular terminals and adaptable configurationsto meet specialized requirements.
Global Shipping & Compliance
Express Air Freight: DHL/FedEx delivery to Europe/US within 5-7 business days.
FCL Ocean Shipping: Full container load transit in 30 days.
Customs Clearance Support: Full documentation package including Certificate of Origin and export declarations for seamless import compliance.
FAQ
1. How to Select IP Rating?
IP68 waterproof cable connectors are perfect for outdoor use, like garden lights or buried lamps, fully dustproof and water-resistant.
2. Professional Tools Required for Installation?
Yes, this cable connector IP68 outdoor has a screw lock design. Contact us for guidance.
3. Customization Options Available?
Outdoor lighting cable connectors can be customized in branding, sizes, terminal positions (2P–12P), and materials. MOQ 500 units.
4. International Compliance Certifications?
Complies with ETL, ENEC, UKCA, NSW, SAA, CB, CE, and RoHS. Reports available on request.
5. Logistics & Packaging Details?
Global delivery by express, air, or sea. Major regions within 15 days. Fully protected packaging.
6. After-Sales Service Policy?
30-day return/exchange for non-human damage with 3-year warranty. 24h support via Email/WhatsApp.
