Model No: M685-TL
IP68 3 Wire Waterproof Connector 3 Way Wire Connector Waterproof
Wiring Method: Screw Type
IP Rating: IP68
Electrical Rating: 32A 450V
Pins: 2pin/3pin/4pin/5pin
Wire Range: 0.5-4.0mm²
Available Cable Diameter: 4-8mm/8-12mm/10-14mm
Applications: Underwater , Underground, Outdoor Lighting, Solar Systems, Security Systems
IP Rating: IP68
Electrical Rating: 32A 450V
Pins: 2pin/3pin/4pin/5pin
Wire Range: 0.5-4.0mm²
Available Cable Diameter: 4-8mm/8-12mm/10-14mm
Applications: Underwater , Underground, Outdoor Lighting, Solar Systems, Security Systems
minimum order :
1 piece
Subscribe to our Newsletter
Key Features
IP68 Waterproof, Dustproof, and UV-Resistant
M685-TL 3 wire waterproof connector provide IP68-level protection, withstanding 20m depth for 150 hours. These 3 way wire connector waterproof resist dust, water, and UV aging, ensuring long-lasting reliability in outdoor and low-voltage applications.
Durable Screw-Lock Connections
These waterproof low voltage wire connector feature secure screw-lock terminals, maintaining stable electrical connections even in vibration-prone or harsh outdoor environments.
Versatile Three-Way Distribution
As 3 way wire connector waterproof, M685-TL allows flexible three-direction branching, supporting multiple waterproof low voltage wire connector installations in landscape, garden, and industrial lighting projects.
Fire-Retardant and Weather-Resistant Housing
Made with UL94V-2 fire-retardant materials, these 3 wire waterproof connector resist high and low temperatures from -40℃ to +105℃ and provide excellent UV and outdoor weather durability.
Globally Certified for Professional Use
The 3 wire waterproof connector, 3 way wire connector waterproof, and waterproof low voltage wire connector are certified with ENEC, CE, UKCA, ETL, NSW, CB, and RoHS, meeting international standards for professional electrical installations.
Looking for reliable IP68 3 wire waterproof connector for your project?
Contact our team today for pricing, samples, or OEM customization. Send Inquiry Now
Contact our team today for pricing, samples, or OEM customization. Send Inquiry Now
Product Parameters
Item | Specification |
Model | M685-TL |
IP Rating | IP68 |
Terminal | 2Pin/3Pin/4Pin/5Pin |
| Wiring Method | Screw Type |
Contact Material | Copper |
Housing Material | Fire retardant UL94V-2 |
Rated Output | IEC/NSW: 32A 450VAC ETL: 18A 300VAC |
Rated Connecting Capacity | European: 0.5-4.0mm² Australian: 0.5-4.0mm² American: SJOW 12-14 AWG |
| Available Cable Diameter | M25 (4-8mm/8-12mm/10-14mm) |
Working Temperature | -40℃ to +105℃ |
Waterproof Testing | 20m depth for 150 hours |
| Product Size | 97.1*94.4*30.1mm |
| Certification | ENEC, CE, UKCA, ETL, NSW, CB, RoHS |
| Applications | underwater, underground, outdoor electrical connection |
Need technical support or samples? We can help you choose the right IP68 3 wire waterproof connector. Contact Us for Samples!
Certification
Installation Instructions
Step 1

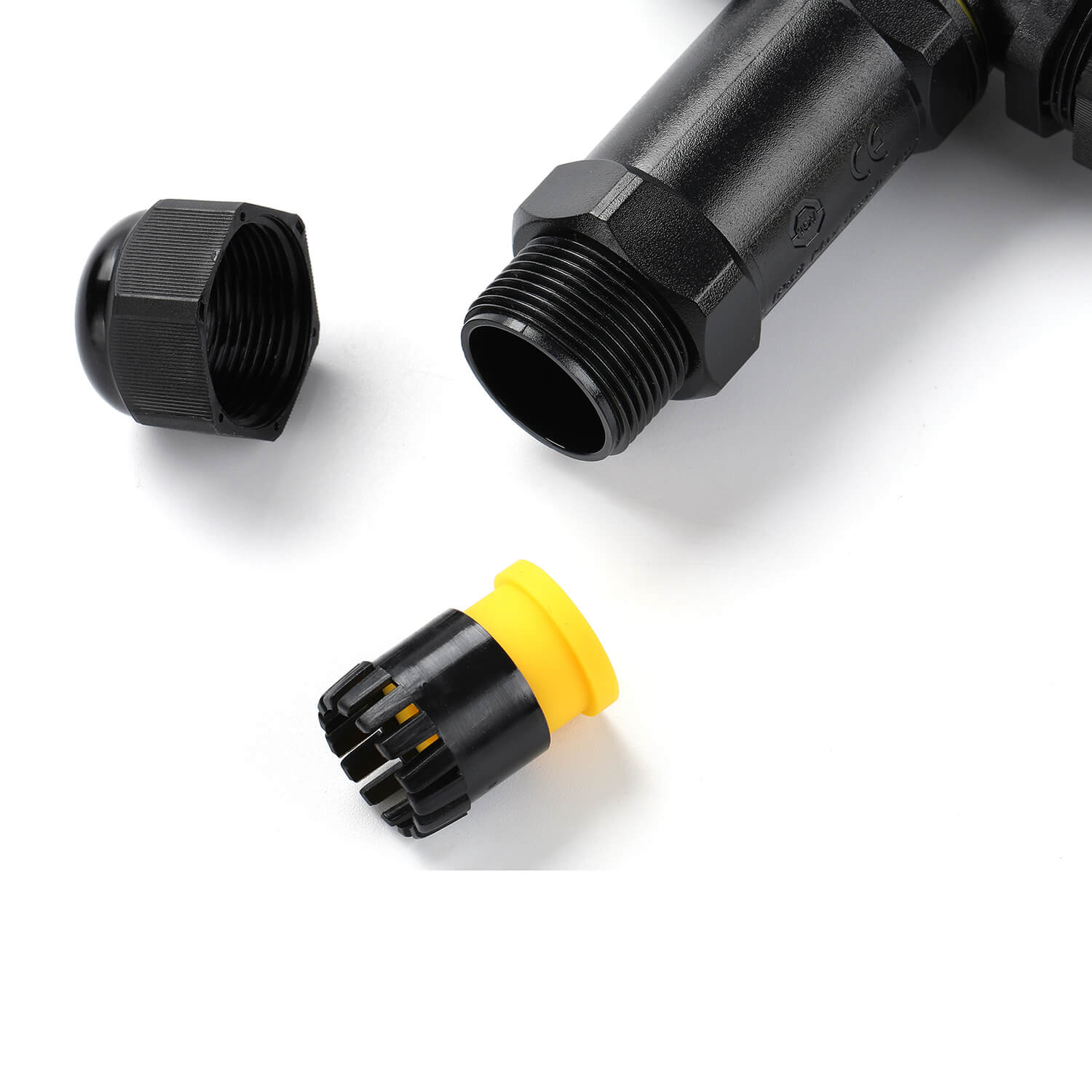

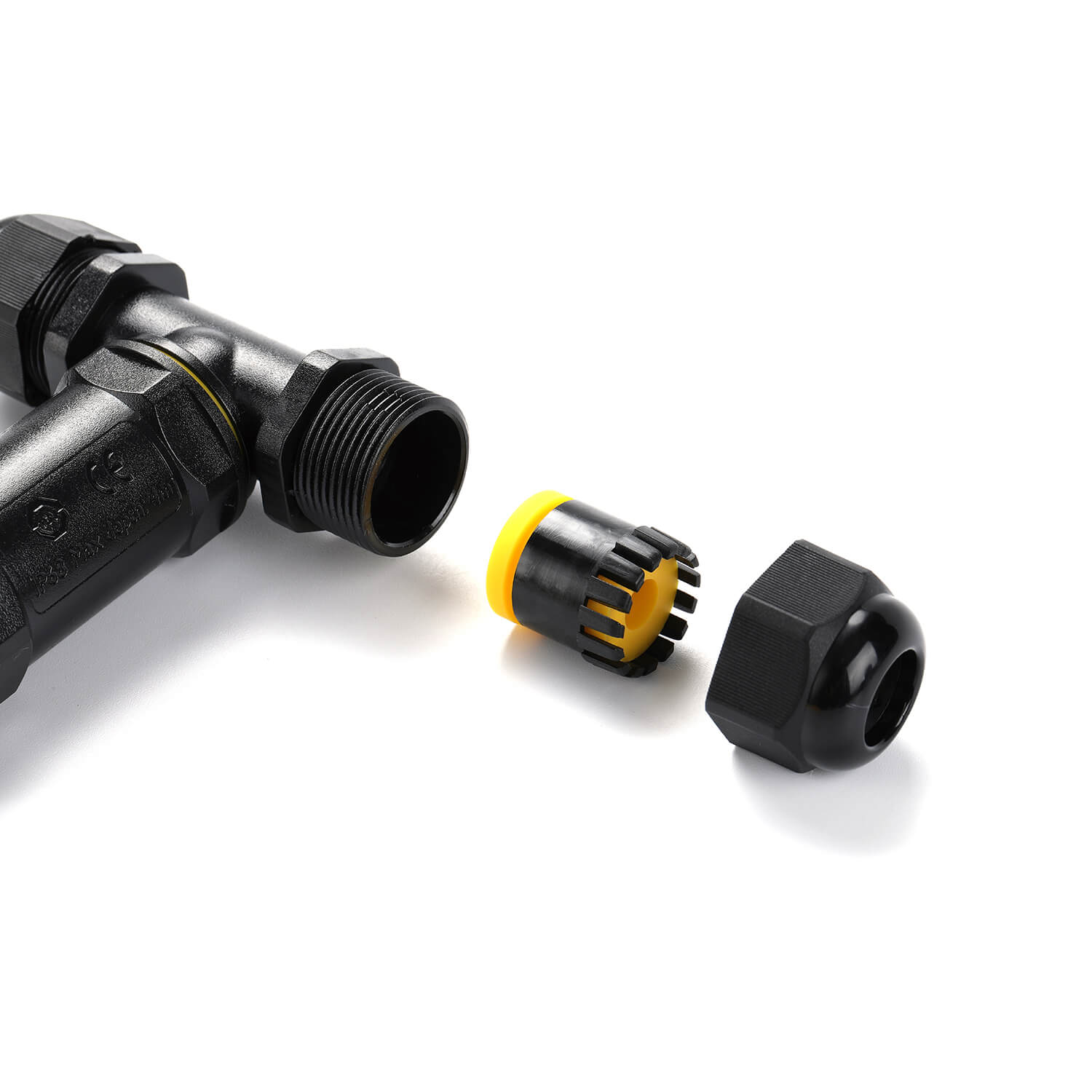

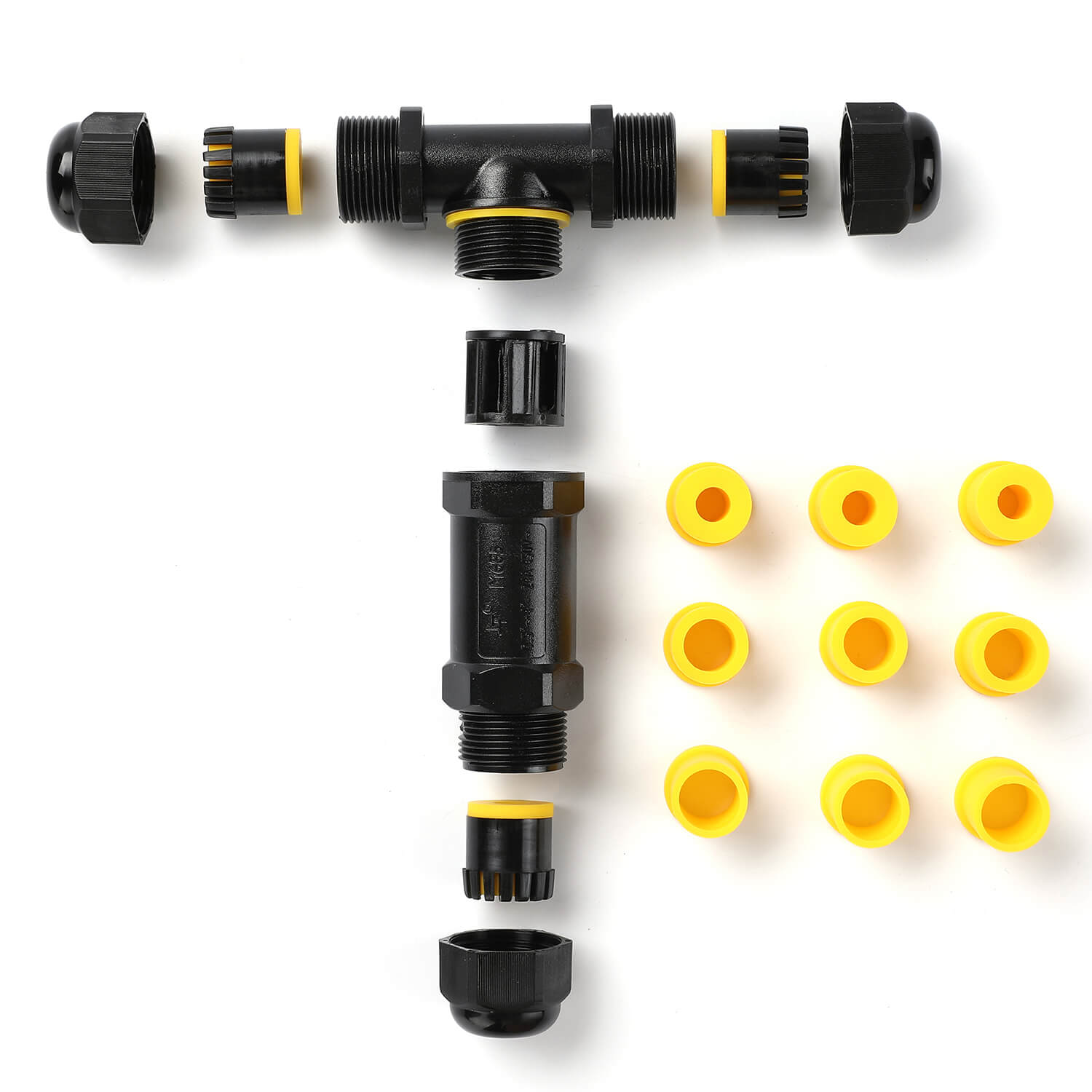

Unscrew the nut covers on both ends and remove the internal quick connector.
Step 2
Thread the cable through the nut body and lift the lever.
Step 3
Insert the wires into the corresponding terminals and secure the screw to lock the wires.
Step 4
Tighten the cable glands to complete the waterproof sealing.
Applications
Outdoor Lighting
Perfect for garden lights, landscape lighting, and backyard electrical systems.
Industrial Installations
Suitable for street lighting, stadium lighting, and outdoor electrical equipment.
Security Systems
Used in outdoor surveillance camera power connections and waterproof electrical boxes.
Solar Systems
Reliable connector solution for solar lighting and photovoltaic installations.
Company Profile
Production Capacity
Equipped with fully automated injection molding machines and assembly lines, delivering a monthly output of 500,000 units.CustomOEM/ODM solutions are supported to meet diverse client specifications.
Quality Assurance
Waterproof testing( 20m depth/150h), high-voltage resistance (2750V),and flame-retardant certification (V0/2 standards). All processes adhere to industrial safety and durability benchmarks.
Warehouse Storage
5000m² warehouse to keep enough materials in stock, ample warehousesize for efficient and speedy shipments, your orders deliveried promptly.
Our Advantages
Service Policy Overview
01 Pre-Sales Support
Technical specifications and product samples are guaranteed to be provided within 24hours, ensuring rapid decision-making for clients.
02 Operational Response
Global 24x7 customer support delivers real-time tech and logistics assistance. Expedite orders ship in 7-10 days via automated production.
03 Post-Sales Warraty
A comprehensive 3-year warranty is offered, coveringnon human-induced defectsin materials or manufacturing.
Product Custiomization Solution
Custom Packaging
Diverse retail-ready designs tailored for supermarkets, hardware stores,and bulk distribution.
OEM Branding Services
Professional private-label manufacturing with precision logo imprintingfor brand identityenhancement.
Functional Expansion
Flexible integration of modular terminals and adaptable configurationsto meet specialized requirements.
Global Shipping & Compliance
Express Air Freight: DHL/FedEx delivery to Europe/US within 5-7 business days.
FCL Ocean Shipping: Full container load transit in 30 days.
Customs Clearance Support: Full documentation package including Certificate of Origin and export declarations for seamless import compliance.
FAQ
1. How to Select IP Rating?
IP68 is ideal for outdoor use such as garden and underground lighting, offering full dust protection and strong water resistance for electrical connections.
2. Professional Tools Required for Installation?
Yes, the screw type requires tools for installation. Contact us for guidance or technical support if needed.
3. Customization Options Available?
Yes, 3 wire waterproof connector options can be customized in branding, packaging, sizes, terminal positions (2P–12P), and materials. MOQ is 500 units.
4. International Compliance Certifications?
All our 3 wire waterproof connector products meet ETL, ENEC, UKCA, NSW, SAA, CB, CE, and RoHS standards. Reports can be provided upon request.
5. Logistics & Packaging Details?
Global delivery via express, air, or sea. Major regions can be shipped within 15 days. Packaging ensures protection and supports bulk transport.
6. After-Sales Service Policy?
30-day return or exchange for non-human damage with a 3-year warranty. Support is available within 24 hours via Email or WhatsApp.
