Model No: M685-TS
IP68 5 Pin Waterproof Connector 2-5Pin T Shaped Connector
Wiring Method: Screw Type
IP Rating: IP68
Electrical Rating: 32A 450V
Pins: 2pin/3pin/4pin/5pin
Wire Range: 0.5-4mm²
Available Cable Diameter: 4-8mm/8-12mm/10-14mm
Applications: Underwater , Underground, Outdoor Lighting, Solar Systems, Security Systems
IP Rating: IP68
Electrical Rating: 32A 450V
Pins: 2pin/3pin/4pin/5pin
Wire Range: 0.5-4mm²
Available Cable Diameter: 4-8mm/8-12mm/10-14mm
Applications: Underwater , Underground, Outdoor Lighting, Solar Systems, Security Systems
minimum order :
1 piece
Subscribe to our Newsletter
Key Features
Efficient 3-Way T Connection
The M685-TS is a 3-way T-type solution designed for complex wiring layouts. It works perfectly as a 5 pin waterproof connector for branching connections in outdoor lighting systems.
Secure Screw Lock Structure
This 5 core waterproof cable connector features a screw lock design, ensuring firm and stable connections. It is ideal for long-term use in outdoor environments where reliability is critical.
Wide Cable & Pin Support
Supports M25 cable diameters (4–8mm / 8–12mm / 10–14mm) with 2–5 PIN options. This 5 pin connector for outdoor lighting offers flexible configurations for different installation needs.
Durable in Harsh Conditions
Built with UL94V-2 flame-retardant materials, it operates from -40℃ to +105℃. This 5 core waterproof cable connector maintains stable performance in wet, dusty, and extreme environments.
Certified for Global Applications
Complies with ENEC, CE, UKCA, ETL, NSW, CB, and RoHS standards. This 5 pin waterproof connector is widely used in outdoor lighting and electrical projects requiring safe and durable connections.
Looking for reliable IP68 5 pin waterproof connectors for your project?
Contact our team today for pricing, samples, or OEM customization. Send Inquiry Now
Contact our team today for pricing, samples, or OEM customization. Send Inquiry Now
Product Parameters
Item | Specification |
Model | M685-TS |
IP Rating | IP68 |
Terminal | 2Pin/3Pin/4Pin/5Pin |
| Wiring Method | Screw Type |
Contact Material | Copper |
Housing Material | Fire retardant UL94V-2 |
Rated Output | IEC/NSW: 32A 450VAC ETL: 18A 300VAC |
Rated Connecting Capacity | European: 0.5-4.0mm² Australian: 0.5-4.0mm² American: SJOW 12-14 AWG |
| Available Cable Diameter | M25 (4-8mm/8-12mm/10-14mm) |
Working Temperature | -40℃ to +105℃ |
Waterproof Testing | 20m depth for 150 hours |
| Product Size | 101.9*84.6*30.1mm |
| Certification | ENEC, CE, UKCA, ETL, NSW, CB, RoHS |
| Applications | underwater, underground, outdoor electrical connection |
Need technical support or samples? We can help you choose the right IP68 5 pin waterproof connectors. Contact Us for Samples!

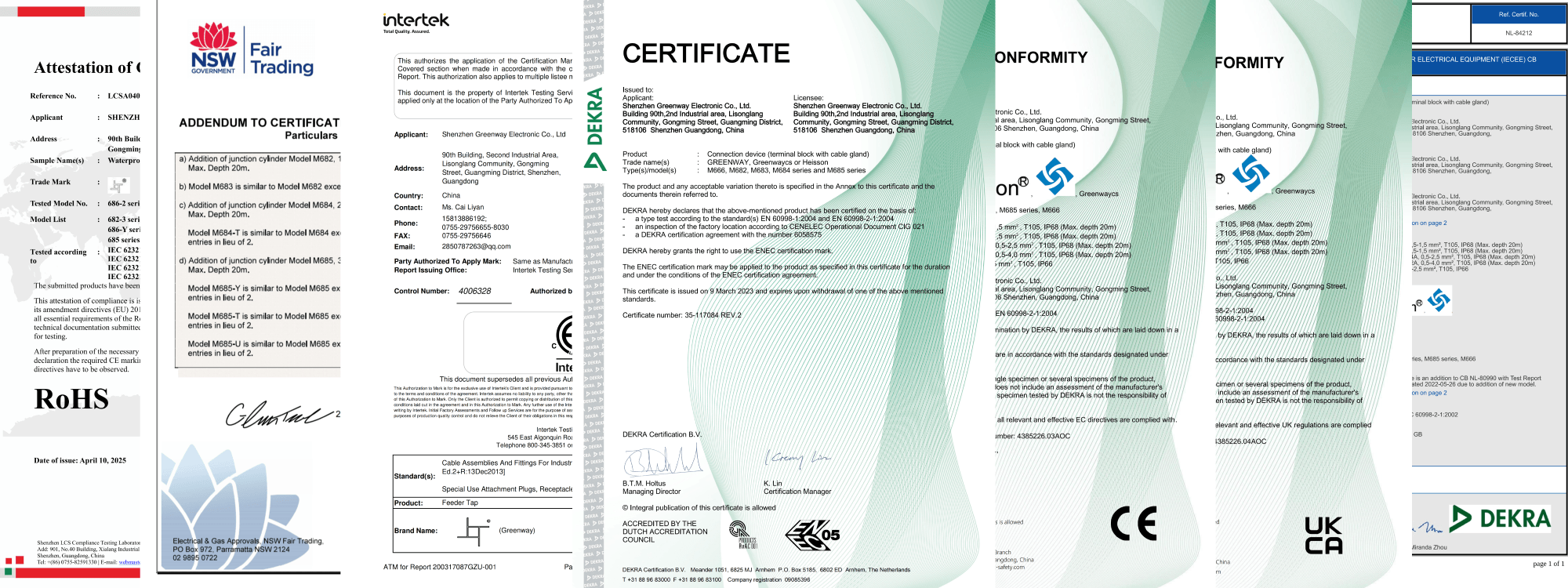

Certification

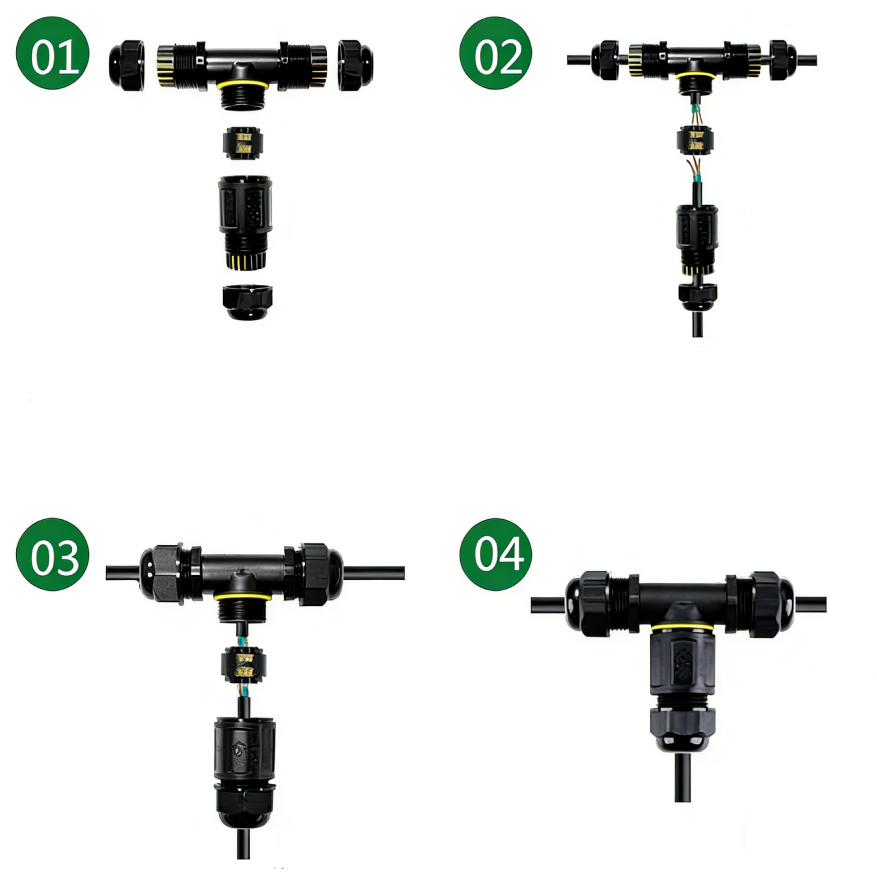

Installation Instructions
