Model No: M685-AL 2-5Pin
Liquid Tight Straight Connector Underwater Electrical Connector for Lighting
Wiring Method: Screw Type
IP Rating: IP68
Electrical Rating: 32A 450V
Pins: 2pin/3pin/4pin/5pin
Wire Range: 0.5-4.0mm²
Available Cable Diameter: 4-8mm/8-12mm/10-14mm
Applications: Underwater , Underground, Outdoor Lighting, Solar Systems, Security Systems
IP Rating: IP68
Electrical Rating: 32A 450V
Pins: 2pin/3pin/4pin/5pin
Wire Range: 0.5-4.0mm²
Available Cable Diameter: 4-8mm/8-12mm/10-14mm
Applications: Underwater , Underground, Outdoor Lighting, Solar Systems, Security Systems
minimum order :
1 piece
Subscribe to our Newsletter
Key Features
IP68 Waterproof Seal
The underwater electrical connector reach IP68 protection and withstand 20m depth for 150 hours, ideal for wet and outdoor installations.
Reliable Power Load
The underwater electrical connector support up to 32A 450VAC with stable copper contact conductivity.
Flexible Cable Fit
This liquid tight straight connector fits 4-14mm cable diameters for easier project matching.
Flame Safe Housing
UL94V-2 housing gives these underwater electrical connector added safety in demanding environments.
Lighting Connection Use
Available in 2Pin to 5Pin, these underwater electrical connector serve as an electrical connector for lighting systems.
Looking for reliable IP68underwater electrical connectors for your project?
Contact our team today for pricing, samples, or OEM customization. Send Inquiry Now
Contact our team today for pricing, samples, or OEM customization. Send Inquiry Now
Product Parameters
Item | Specification |
Model | M685-AL |
IP Rating | IP68 |
Terminal | 2Pin/3Pin/4Pin/5Pin |
| Wiring Method | Screw Type |
Contact Material | Copper |
Housing Material | Fire retardant UL94V-2 |
Rated Output | IEC/NSW: 32A 450VAC ETL: 18A 300VAC |
Rated Connecting Capacity | European: 0.5-4.0mm² Australian: 0.5-4.0mm² American: SJOW 12-14 AWG |
| Available Cable Diameter | M25 (4-8mm/8-12mm/10-14mm) |
Working Temperature | -40℃ to +105℃ |
Waterproof Testing | 20m depth for 150 hours |
| Product Size | 113*30mm |
| Certification | ENEC, CE, UKCA, ETL, NSW, CB, RoHS |
| Applications | underwater, underground, outdoor electrical connection |
Need technical support or samples? We can help you choose the right IP68underwater electrical connectors. Contact Us for Samples!
Certification
Installation Instructions

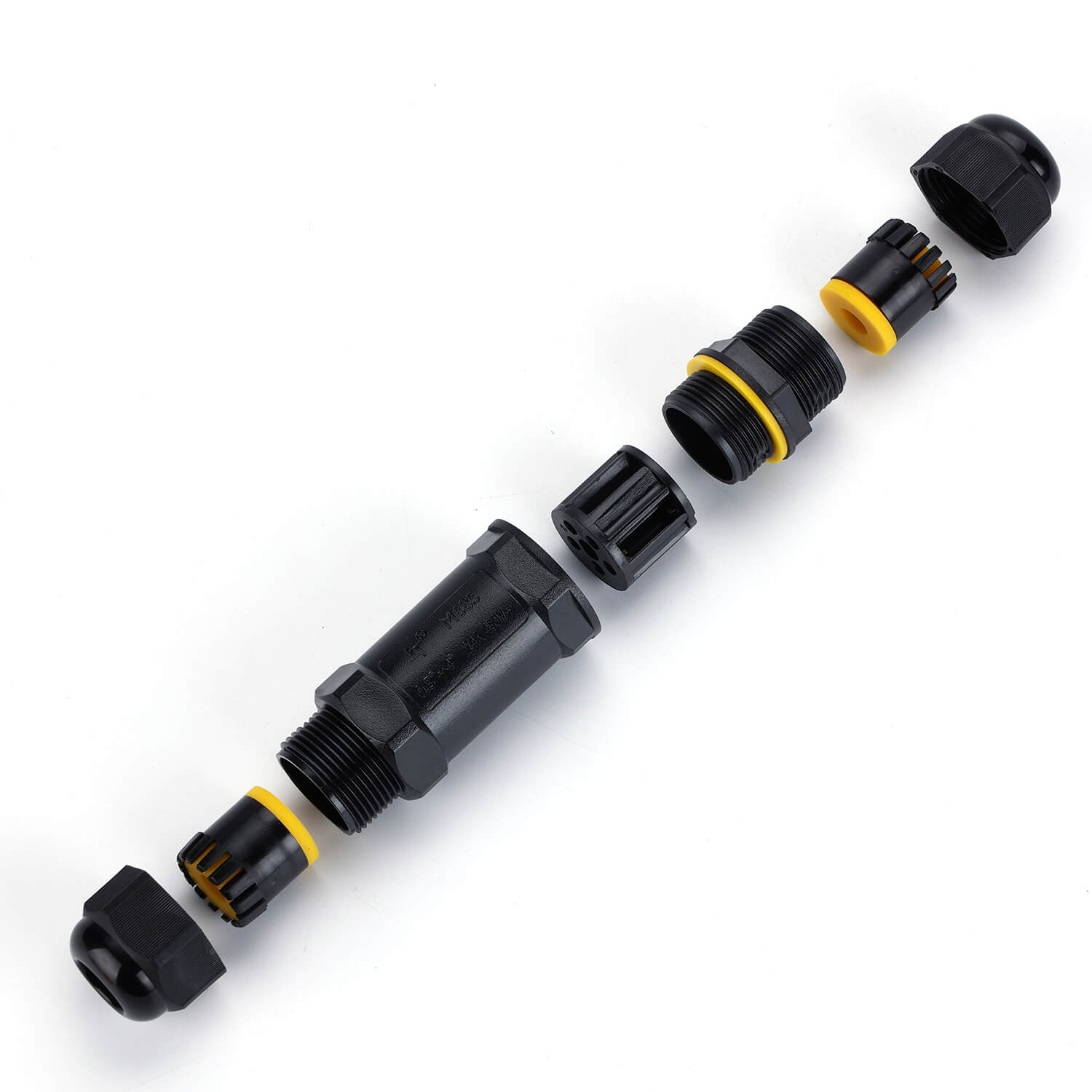

Step 1
Unscrew the nut covers on both ends and remove the internal quick connector.
Step 2
Thread the cable through the nut body and lift the lever.
Step 3

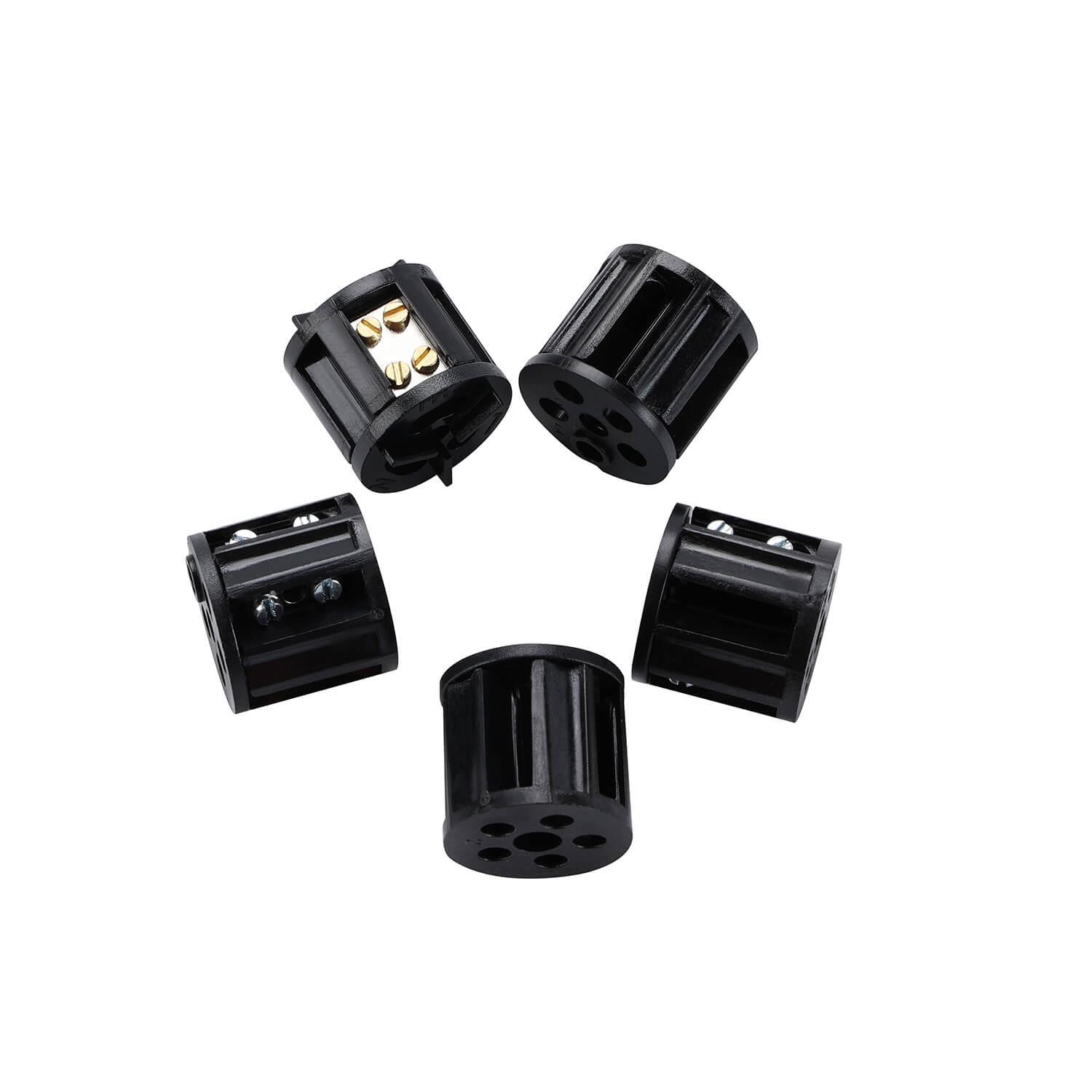

Insert the wires into the corresponding terminals and tighten the screws to lock the wires.
Step 4
Tighten the cable glands on both ends to complete the waterproof sealing.
Applications
Outdoor Lighting
Perfect for garden lights, landscape lighting, and backyard electrical systems.
Industrial Installations
Suitable for street lighting, stadium lighting, and outdoor electrical equipment.
Security Systems
Used in outdoor surveillance camera power connections and waterproof electrical boxes.
Solar Systems
Reliable connector solution for solar lighting and photovoltaic installations.
Company Profile
Production Capacity
Equipped with fully automated injection molding machines and assembly lines, delivering a monthly output of 500,000 units.CustomOEM/ODM solutions are supported to meet diverse client specifications.
Quality Assurance
Waterproof testing( 20m depth/150h), high-voltage resistance (2750V),and flame-retardant certification (V0/2 standards). All processes adhere to industrial safety and durability benchmarks.
Warehouse Storage
5000m² warehouse to keep enough materials in stock, ample warehousesize for efficient and speedy shipments, your orders deliveried promptly.
Our Services
Service Policy Overview
01 Pre-Sales Support
Technical specifications and product samples are guaranteed to be provided within 24hours, ensuring rapid decision-making for clients.
02 Operational Response
Global 24x7 customer support delivers real-time tech and logistics assistance. Expedite orders ship in 7-10 days via automated production.
03 Post-Sales Warraty
A comprehensive 3-year warranty is offered, coveringnon human-induced defectsin materials or manufacturing.
Product Custiomization Solution
Custom Packaging
Diverse retail-ready designs tailored for supermarkets, hardware stores,and bulk distribution.
OEM Branding Services
Professional private-label manufacturing with precision logo imprintingfor brand identityenhancement.
Functional Expansion
Flexible integration of modular terminals and adaptable configurationsto meet specialized requirements.
Global Shipping & Compliance
Express Air Freight: DHL/FedEx delivery to Europe/US within 5-7 business days.
FCL Ocean Shipping: Full container load transit in 30 days.
Customs Clearance Support: Full documentation package including Certificate of Origin and export declarations for seamless import compliance.
FAQ
1. How to Select IP Rating?
The underwater electrical connector is perfect for outdoor use, such as garden lights or buried lamps. It offers full dust protection and withstands high-pressure water.
2. Professional Tools Required for Installation?
This underwater electrical connector uses a screw lock design and requires tools for installation. For detailed guidelines or technical support, contact us directly.
3. Customization Options Available?
Custom branding, packaging, dimensions (multiple sizes), terminal positions (2P-12P}, and material selection (PA/PC). Minimum order quantity 500 units.
4. International Compliance Certifications?
All products comply with ETL, ENEC, UKCA, NSW, SAA, CB CE and RoHs standards. Certification numbers and test reports available upon request.
5. Logistics & Packaging Details?
Global shipping via express/air/sea. Expedited delivery within 15 days to major regions. Comprehensive protective packaging with palletized bulktransport support.
6. After-Sales Service Policy?
Non-human damage: 30-day return/exchange policy with 3-year warranty. Technical issues: 24-hour response via email/WhatsApp, including installation videos and diagrams.
