Model No: M685-TL 2-5 Pin
IP68 Outdoor Splice Connector 3 Way Waterproof Screw Wire Splice Connector
Wiring Method: Screw Type
IP Rating: IP68
Electrical Rating: 32A 450V
Pins: 2pin/3pin/4pin/5pin
Wire Range: 0.5-4.0mm²
Available Cable Diameter: 4-8mm/8-12mm/10-14mm
Applications: Underwater, Underground, Outdoor Lighting, Solar Systems, Security Systems
IP Rating: IP68
Electrical Rating: 32A 450V
Pins: 2pin/3pin/4pin/5pin
Wire Range: 0.5-4.0mm²
Available Cable Diameter: 4-8mm/8-12mm/10-14mm
Applications: Underwater, Underground, Outdoor Lighting, Solar Systems, Security Systems
minimum order :
1 piece
Subscribe to our Newsletter
Key Features
IP68 Waterproof, Dustproof, and UV-Resistant
M685-TL outdoor splice connector are tested to 20m depth for 150 hours, providing superior IP68 waterproof and dustproof performance. These 3 way waterproof butt splice connector resist UV aging and harsh outdoor conditions, ensuring long-lasting reliability.
Secure Screw-Lock Terminals
The screw wire splice connector design ensures firm and stable electrical connections, preventing loosening even in vibration-prone or high-stress outdoor environments.
Flexible Three-Way Branching
As 3 way waterproof butt splice connector, M685-TL allows efficient three-direction cable distribution, supporting multiple outdoor splice connector installations for lighting, landscaping, and industrial applications.
Fire-Retardant and Durable Materials
Made from UL94V-2 fire-retardant materials, these outdoor splice connector maintain reliable performance across temperatures from -40℃ to +105℃, with excellent resistance to UV and environmental aging.
Certified for International Standards
The outdoor splice connector, 3 way waterproof butt splice connector, and screw wire splice connector are fully certified with ENEC, CE, UKCA, ETL, NSW, CB, and RoHS, ensuring compliance for professional outdoor electrical projects.
Looking for reliable IP68 outdoor splice connector for your project?
Contact our team today for pricing, samples, or OEM customization. Send Inquiry Now
Contact our team today for pricing, samples, or OEM customization. Send Inquiry Now
Product Parameters
Item | Specification |
Model | M685-TL |
IP Rating | IP68 |
Terminal | 2Pin/3Pin/4Pin/5Pin |
| Wiring Method | Screw Type |
Contact Material | Copper |
Housing Material | Fire retardant UL94V-2 |
Rated Output | IEC/NSW: 32A 450VAC ETL: 18A 300VAC |
Rated Connecting Capacity | European: 0.5-4.0mm² Australian: 0.5-4.0mm² American: SJOW 12-14 AWG |
| Availble Cable Diameter | M25 (4-8mm/8-12mm/10-14mm) |
Working Temperature | -40℃ to +105℃ |
Waterproof Testing | 20m depth for 150 hours |
| Product Size | 97.1*94.4*30.1mm |
| Certification | ENEC, CE, UKCA, ETL, NSW, CB, RoHS |
| Appliations | underwater, underground, outdoor electrical connection |
Need technical support or samples? We can help you choose the right IP68 outdoor splice connector. Contact Us for Samples!
Certification

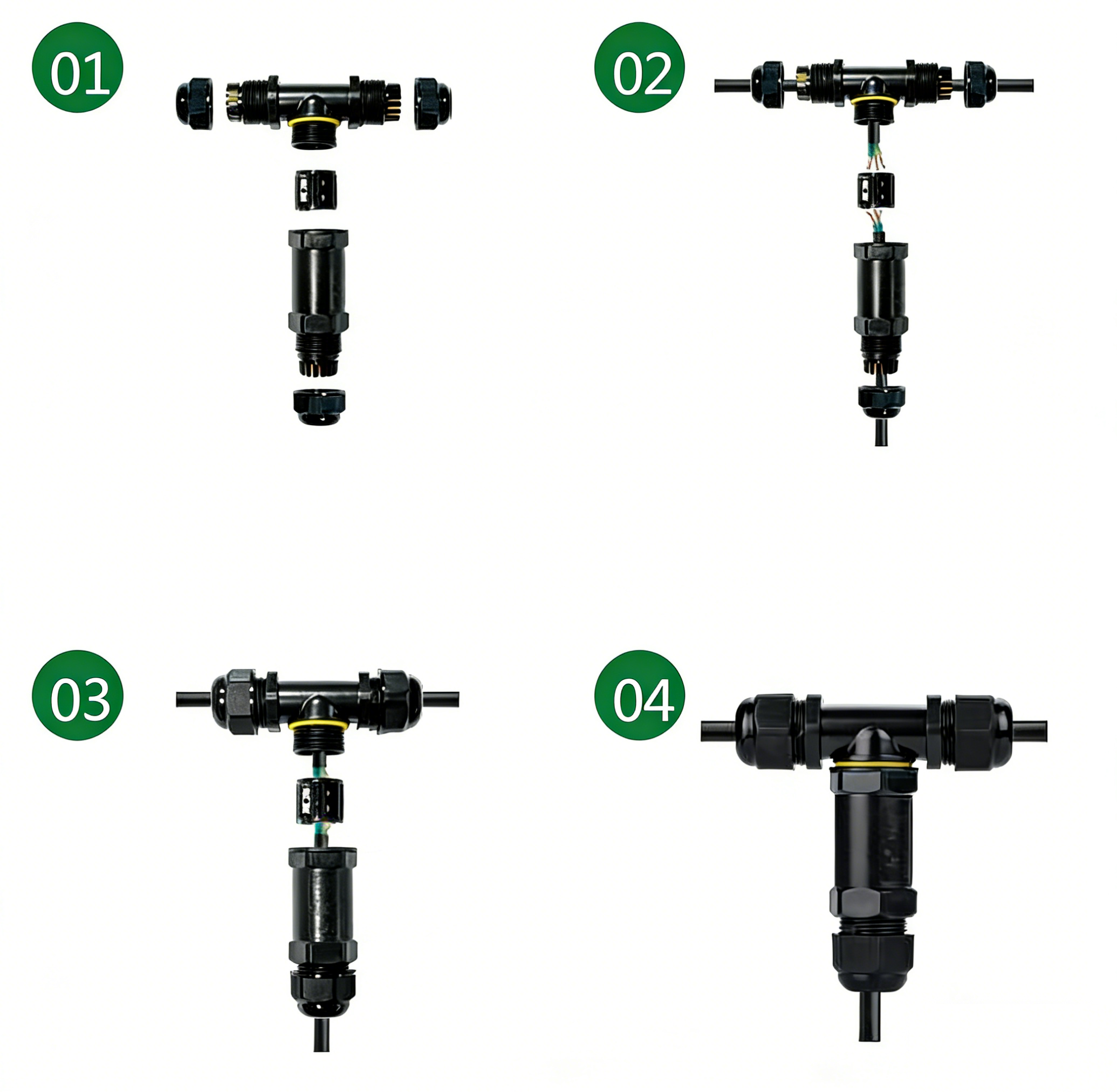

Installation Instructions
Step 1
Unscrew the nut covers on both ends and remove the internal quick connector.
Step 2
Thread the cable through the nut body and lift the lever.
Step 3
Insert the wires into the corresponding terminals and secure the screw to lock the wires.
Step 4
Tighten the cable glands to complete the waterproof sealing.
Applications
Outdoor Lighting
Perfect for garden lights, landscape lighting, and backyard electrical systems.
Industrial Installations
Suitable for street lighting, stadium lighting, and outdoor electrical equipment.
Security Systems
Used in outdoor surveillance camera power connections and waterproof electrical boxes.
Solar Systems
Reliable connector solution for solar lighting and photovoltaic installations.
Company Profile
Production Capacity
Equipped with fully automated injection molding machines and assembly lines, delivering a monthly output of 500,000 units.CustomOEM/ODM solutions are supported to meet diverse client specifications.
Quality Assurance
Waterproof testing( 20m depth/150h), high-voltage resistance (2750V),and flame-retardant certification (V0/2 standards). All processes adhere to industrial safety and durability benchmarks.
Warehouse Storage
5000m² warehouse to keep enough materials in stock, ample warehousesize for efficient and speedy shipments, your orders deliveried promptly.
Our Advantages
Service Policy Overview
01 Pre-Sales Support
Technical specifications and product samples are guaranteed to be provided within 24hours, ensuring rapid decision-making for clients.
02 Operational Response
Global 24x7 customer support delivers real-time tech and logistics assistance. Expedite orders ship in 7-10 days via automated production.
03 Post-Sales Warraty
A comprehensive 3-year warranty is offered, coveringnon human-induced defectsin materials or manufacturing.
Product Custiomization Solution
Custom Packaging
Diverse retail-ready designs tailored for supermarkets, hardware stores,and bulk distribution.
OEM Branding Services
Professional private-label manufacturing with precision logo imprintingfor brand identityenhancement.
Functional Expansion
Flexible integration of modular terminals and adaptable configurationsto meet specialized requirements.
Global Shipping & Compliance
Express Air Freight: DHL/FedEx delivery to Europe/US within 5-7 business days.
FCL Ocean Shipping: Full container load transit in 30 days.
Customs Clearance Support: Full documentation package including Certificate of Origin and export declarations for seamless import compliance.
FAQ
1. How to Select IP Rating?
IP68 is ideal for outdoor use such as garden and underground lighting, offering full dust protection and strong water resistance for electrical connections.
2. Professional Tools Required for Installation?
Yes, the screw type requires tools for installation. Contact us for guidance or technical support if needed.
3. Customization Options Available?
Yes, outdoor splice connector options can be customized in branding, packaging, sizes, terminal positions (2P–12P), and materials. MOQ is 500 units.
4. International Compliance Certifications?
All our outdoor splice connector products meet ETL, ENEC, UKCA, NSW, SAA, CB, CE, and RoHS standards. Reports can be provided upon request.
5. Logistics & Packaging Details?
Global delivery via express, air, or sea. Major regions can be shipped within 15 days. Packaging ensures protection and supports bulk transport.
6. After-Sales Service Policy?
30-day return or exchange for non-human damage with a 3-year warranty. Support is available within 24 hours via Email or WhatsApp.
