Model No: M684-TS 2-3 pin
IP68 Waterproof Wiring Connector 3 Way T Type
Wiring Method: Screw Type
IP Rating: IP68
Electrical Rating: 24A 450V
Pins: 2pin/3pin
Wire Range: 0.5-2.5mm²
Available Cable Diameter: 4-8mm/6-11mm
Applications: Underwater, Underground, Outdoor Lighting, Solar Systems, Security Systems
IP Rating: IP68
Electrical Rating: 24A 450V
Pins: 2pin/3pin
Wire Range: 0.5-2.5mm²
Available Cable Diameter: 4-8mm/6-11mm
Applications: Underwater, Underground, Outdoor Lighting, Solar Systems, Security Systems
minimum order :
1 piece
Subscribe to our Newsletter
Key Features
Efficient 3-Way T-Tap Splicing
As 3 way wire splice connector and t tap quick splice wire terminal connector, M684-T enables stable three-direction T-type branching wiring in one solution, ensuring reliable distribution for outdoor and underground electrical systems.
IP68 Waterproof and Dustproof Performance
M684-T waterproof wiring connector have been tested to 20m depth for 150 hours, ensuring reliable protection against water, dust, and harsh outdoor conditions.
Secure Screw-Lock Connections
These waterproof wiring connector use screw-lock terminals to provide firm connections, preventing loosening or disconnection in vibration-prone, wet, or submerged environments.
Fire-Retardant and UV-Resistant Housing
Constructed with UL94V-2 fire-retardant materials, the connectors resist UV aging and maintain reliable performance in temperatures from -40℃ to +105℃, suitable for long-term outdoor applications.
Fully Certified for Global Standards
The waterproof wiring connector are certified with ENEC, CE, UKCA, ETL, NSW, CB, and RoHS, ensuring compliance for international professional projects.
Looking for reliable IP68 waterproof wiring connector for your lighting project?
Contact our team today for pricing, samples, or OEM customization. Send Inquiry Now
Contact our team today for pricing, samples, or OEM customization. Send Inquiry Now
Product Parameters
Item | Specification |
Model | M684-TS |
IP Rating | IP68 |
Terminal | 2Pin/3Pin |
| Wiring Method | Screw Type |
Contact Material | Copper |
Housing Material | Fire retardant UL94V-2 |
Rated Output | IEC/NSW: 24A 450VAC ETL: 10A 300VAC |
Rated Connecting Capacity | European: 0.5-2.5mm² Australian: 0.5-2.5mm² American: SJOW 14-18 AWG |
| Availble Cable Diameter | M20 (4-8mm/6-11mm) |
Working Temperature | -40℃ to+105℃ |
Waterproof Testing | 20m depth for 150 hours |
| Product Size | 129*87*27mm |
| Certification | ENEC, CE, UKCA, ETL, NSW, CB, RoHS |
| Applications | underwater, underground, outdoor electrical connection |
Need technical support or samples? We can help you choose the right IP68 waterproof wiring connector. Contact Us for Samples!
Certification

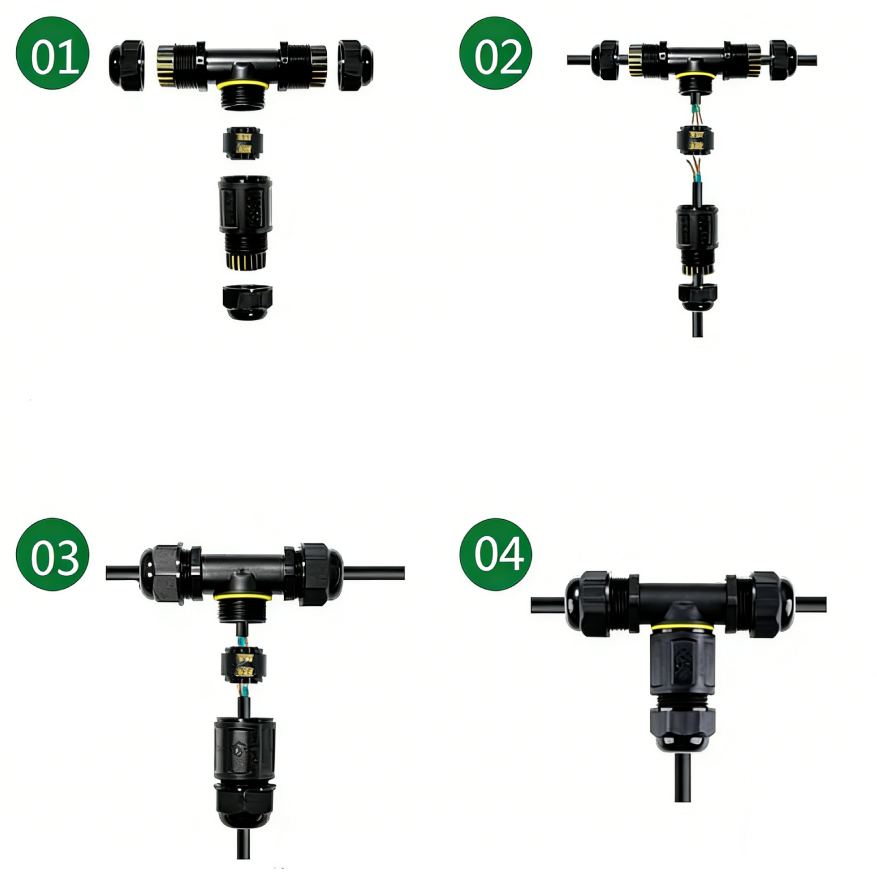

Installation Instructions
Step 1
Unscrew the nut covers on both ends and remove the internal quick connector.
Step 2
Thread the cable through the nut body and lift the lever.
Step 3
Insert the wires into the corresponding terminals and secure the screw to lock the wires.
Step 4
Tighten the cable glands on both ends to complete the waterproof sealing.
Applications
Outdoor Lighting
Perfect for garden lights, landscape lighting, and backyard electrical systems.
Industrial Installations
Suitable for street lighting, stadium lighting, and outdoor electrical equipment.
Security Systems
Used in outdoor surveillance camera power connections and waterproof electrical boxes.
Solar Systems
Reliable connector solution for solar lighting and photovoltaic installations.
Company Profile
Production Capacity
Equipped with fully automated injection molding machines and assembly lines, delivering a monthly output of 500,000 units.CustomOEM/ODM solutions are supported to meet diverse client specifications.
Quality Assurance
Waterproof testing( 20m depth/150h), high-voltage resistance (2750V),and flame-retardant certification (V0/2 standards). All processes adhere to industrial safety and durability benchmarks.
Warehouse Storage
5000m² warehouse to keep enough materials in stock, ample warehousesize for efficient and speedy shipments, your orders deliveried promptly.
Our Services
Service Policy Overview
01 Pre-Sales Support
Technical specifications and product samples are guaranteed to be provided within 24hours, ensuring rapid decision-making for clients.
02 Operational Response
Global 24x7 customer support delivers real-time tech and logistics assistance. Expedite orders ship in 7-10 days via automated production.
03 Post-Sales Warraty
A comprehensive 3-year warranty is offered, coveringnon human-induced defectsin materials or manufacturing.
Product Custiomization Solution
Custom Packaging
Diverse retail-ready designs tailored for supermarkets, hardware stores,and bulk distribution.
OEM Branding Services
Professional private-label manufacturing with precision logo imprintingfor brand identityenhancement.
Functional Expansion
Flexible integration of modular terminals and adaptable configurationsto meet specialized requirements.
Global Shipping & Compliance
Express Air Freight: DHL/FedEx delivery to Europe/US within 5-7 business days.
FCL Ocean Shipping: Full container load transit in 30 days.
Customs Clearance Support: Full documentation package including Certificate of Origin and export declarations for seamless import compliance.
FAQ
1.How to choose the IP rating?
The waterproof wiring connector is ideal for outdoor use, including garden lights and buried lamps. It provides full dust protection and high-pressure water resistance for reliable outdoor wiring.
2. Professional Tools Required for Installation?
This waterproof wiring connector features a screw-free design for fast, tool-free installation. Contact us for detailed instructions or technical support.
3.Can it be customized?
Yes, you can customize branding, packaging, multiple sizes, terminal positions (2P–12P), and materials (PA/PC). Minimum order quantity is 500 units.
4. International Compliance Certifications?
The waterproof wiring connector comply with ETL, ENEC, UKCA, NSW, SAA, CB CE and RoHs standards. Certification numbers and test reports available upon request.
5. Logistics & Packaging Details?
Ship globally via express, air, or sea. Expedited delivery within 15 days is available for major regions. Packaging provides full protection and supports palletized bulk transport.
6. After-Sales Service Policy?
Non-human damage: 30-day return/exchange policy with 3-year warranty.
Technical support: 24-hour response via Email or WhatsApp, including installation videos and diagrams.
