Model No: M684-E 2-3pin
Submersible Wire Connector Waterproof Plug and Socket Connector Male and Female
Wiring Method: Male Female Plug & Screwless Type
IP Rating: IP68
Electrical Rating: 24A 450V
Pins: 2pin/3pin
Wire Range: 0.5-2.5mm²
Available Cable Diameter: 4-8mm/6-11mm
Applications: Underwater, Underground, Outdoor Lighting, Solar Systems, Security Systems
IP Rating: IP68
Electrical Rating: 24A 450V
Pins: 2pin/3pin
Wire Range: 0.5-2.5mm²
Available Cable Diameter: 4-8mm/6-11mm
Applications: Underwater, Underground, Outdoor Lighting, Solar Systems, Security Systems
minimum order :
1 piece
Subscribe to our Newsletter
Key Features
IP68 Protection
These submersible wire connectors deliver full waterproof and dustproof protection with UV-resistant and anti-aging performance, verified through a rigorous 20m depth for 150 hours immersion test.
Stable Inline Plug-and-Socket Structure
Designed as waterproof plug and socket connectors, these submersible wire connectors offer a secure 2-way inline connection with tool-free quick wiring for efficient installation in diverse outdoor setups.
Reliable Male–Female Engagement
With the structure of male and female butt connectors, these submersible wire connectors maintain firm contact under moisture and vibration, ensuring stable performance in long-term field applications.
Durable Fire-Retardant Housing
Engineered for harsh environments, these submersible wire connectors use UL94V-2 flame-retardant materials and operate reliably from –40℃ to +105℃.
Certified for Global Compliance
As waterproof plug and socket connectors designed for professional applications, they meet ENEC, CE, UKCA, ETL, NSW, CB, and RoHS requirements for international safety and compatibility.
Looking for reliable submersible wire connectors for your project?
Contact our team today for pricing, samples, or OEM customization. Send Inquiry Now
Contact our team today for pricing, samples, or OEM customization. Send Inquiry Now
Product Parameters
Item | Specification |
Model | M684-E |
IP Rating | IP68 |
Terminal | 2Pin/3Pin |
| Wiring Method | Male Female Plug & Screwless Type |
Contact Material | Copper |
Housing Material | Fire retardant UL94V-2 |
Rated Output | IEC/NSW: 24A 450VAC ETL: 10A 300VAC |
Rated Connecting Capacity | European: 0.5-2.5mm² Australian: 0.5-2.5mm² American: SJOW 14-18 AWG |
| Availbe Cable Diameter | M20 (4-8mm/6-11mm) |
Working Temperature | -40℃ to+105℃ |
Waterproof Testing | 20m depth for 150 hours |
| Product Size | 110.3*25mm |
| Certification | ENEC, CE, UKCA, ETL, NSW, CB, RoHS |
| Appliactions | underwater, underground, outdoor electrical connection |
Need technical support or samples? We can help you choose the right submersible wire connectors. Contact Us for Samples!
Certification

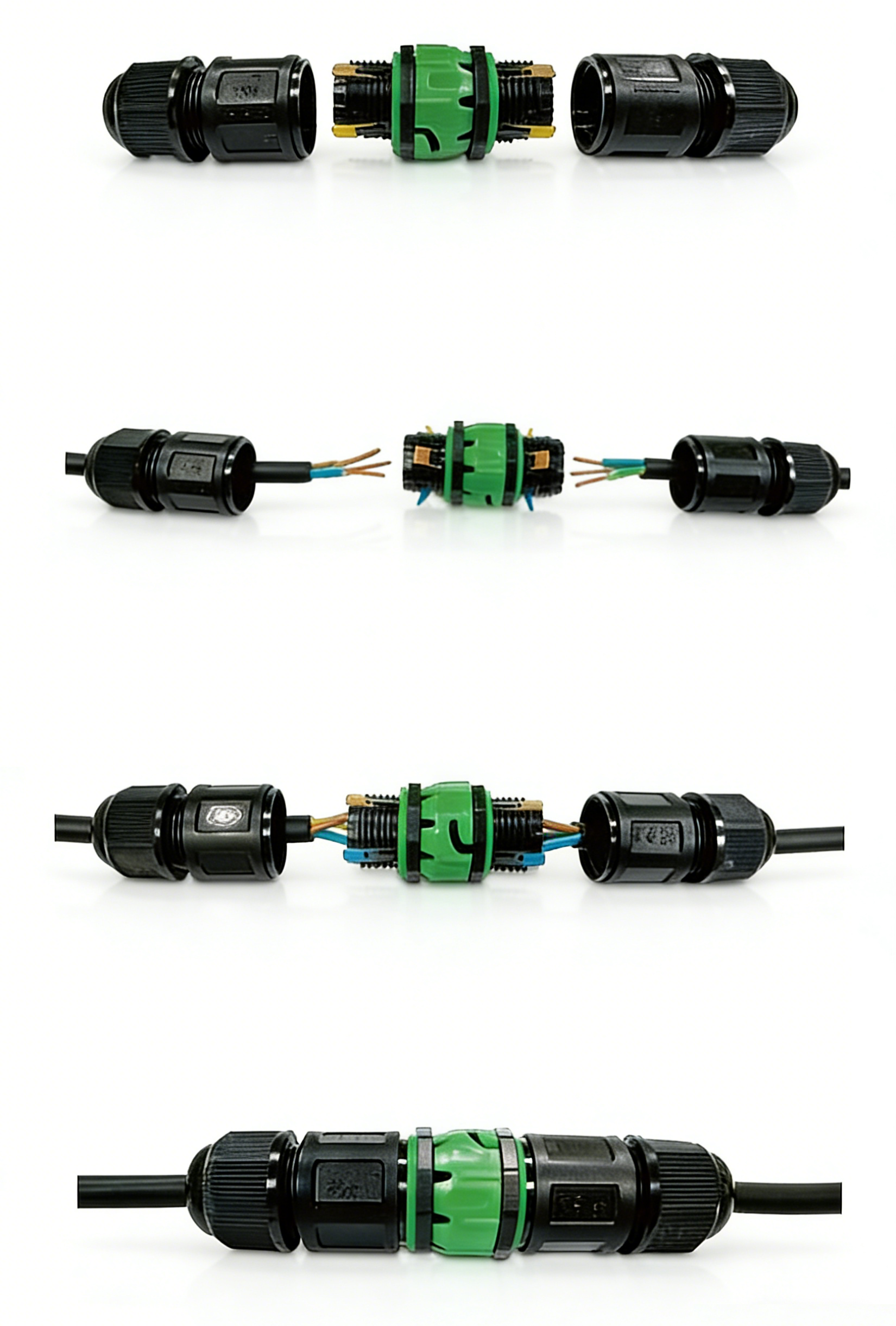

Installation Instructions
Step 1
Unscrew the nut covers on both ends and remove the internal quick connector.
Step 2
Thread the cable through the nut body and lift the lever.
Step 3
Insert the wires into the corresponding terminals and press the lever to lock the wires.
Step 4
Tighten the cable glands on both ends to complete the waterproof sealing.
Applications
Outdoor Lighting
Perfect for garden lights, landscape lighting, and backyard electrical systems.
Industrial Installations
Suitable for street lighting, stadium lighting, and outdoor electrical equipment.
Security Systems
Used in outdoor surveillance camera power connections and waterproof electrical boxes.
Solar Systems
Reliable connector solution for solar lighting and photovoltaic installations.
Company Profile
Production Capacity
Equipped with fully automated injection molding machines and assembly lines, delivering a monthly output of 500,000 units.CustomOEM/ODM solutions are supported to meet diverse client specifications.
Quality Assurance
Waterproof testing( 20m depth/150h), high-voltage resistance (2750V),and flame-retardant certification (V0/2 standards). All processes adhere to industrial safety and durability benchmarks.
Warehouse Storage
5000m² warehouse to keep enough materials in stock, ample warehousesize for efficient and speedy shipments, your orders deliveried promptly.
Our Advantages
Service Policy Overview
01 Pre-Sales Support
Technical specifications and product samples are guaranteed to be provided within 24 hours, ensuring rapid decision-making for clients.
02 Operational Response
Global 24x7 customer support delivers real-time tech and logistics assistance. Expedite orders ship in 7-10 days via automated production.
03 Post-Sales Warraty
A comprehensive 3-year warranty is offered, coveringnon human-induced defectsin materials or manufacturing.
Product Custiomization Solution
Custom Packaging
Diverse retail-ready designs tailored for supermarkets, hardware stores,and bulk distribution.
OEM Branding Services
Professional private-label manufacturing with precision logo imprintingfor brand identityenhancement.
Functional Expansion
Flexible integration of modular terminals and adaptable configurationsto meet specialized requirements.
Global Shipping & Compliance
Express Air Freight: DHL/FedEx delivery to Europe/US within 5-7 business days.
FCL Ocean Shipping: Full container load transit in 30 days.
Customs Clearance Support: Full documentation package including Certificate of Origin and export declarations for seamless import compliance.
FAQ
1.How to select the right IP rating?
IP68 is suitable for outdoor use such as garden or underground lighting, offering full dust sealing and strong water protection for electrical connections.
2.Is installation tool-free?
Yes, submersible wire connectors with screwless design allow quick installation without tools. Contact us for instructions if needed.
3.Are customization options available?
Yes, submersible wire connectors can be customized in branding, packaging, sizes, terminal positions (2P–12P), and materials. MOQ is 500 units.
4.What certifications do you provide?
All products meet ETL, ENEC, UKCA, NSW, SAA, CB, CE, and RoHS standards. Reports can be provided upon request.
5.Logistics & packaging details?
Global shipping via express, air, or sea. Major regions can be delivered within 15 days. Packaging ensures safe transport.
6.After-sales service policy?
30-day return or exchange for non-human damage with a 3-year warranty. Support is available within 24 hours via Email or WhatsApp.
