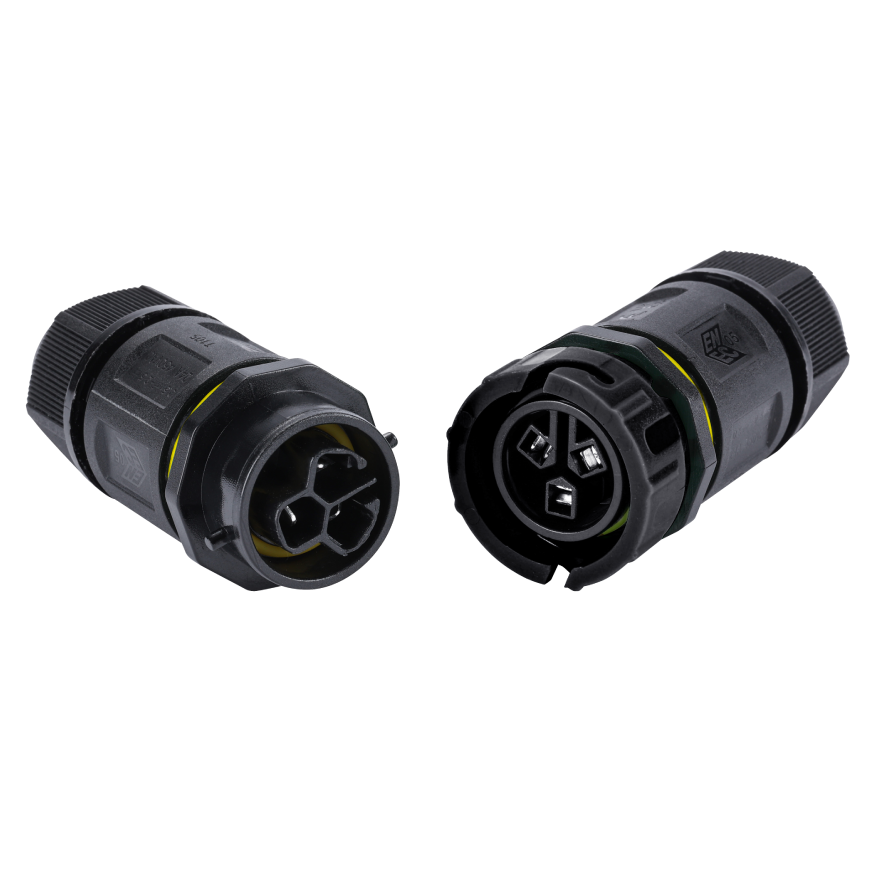

Model No: M684-E
IP68 Male Female Connector Waterproof Inline Connector
Wiring Method: Male & Female Plug, Screwless Type
IP Rating: IP68
Electrical Rating: 24A 450V
Pins: 2pin/3pin
Wire Range: 0.5-2.5mm²
Available Cable Diameter: 4-8mm/6-11mm
Applications: Underwater , Underground, Outdoor Lighting, Solar Systems, Security Systems
IP Rating: IP68
Electrical Rating: 24A 450V
Pins: 2pin/3pin
Wire Range: 0.5-2.5mm²
Available Cable Diameter: 4-8mm/6-11mm
Applications: Underwater , Underground, Outdoor Lighting, Solar Systems, Security Systems
minimum order :
1 piece
Subscribe to our Newsletter

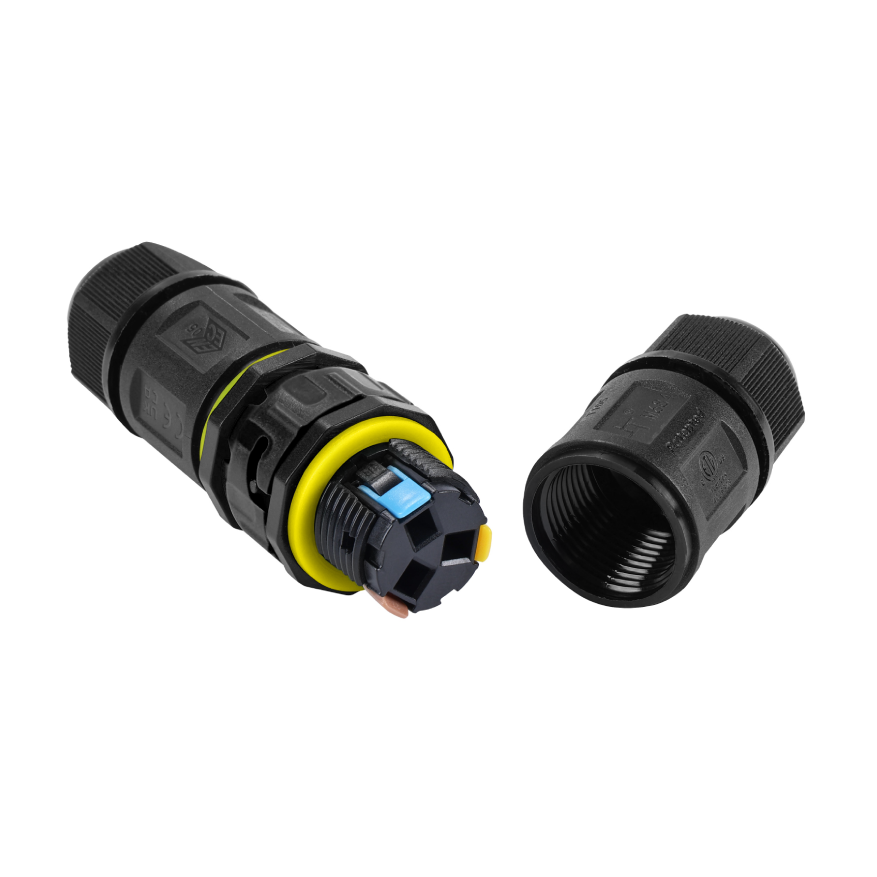

Key Features
Fast Plug-in Connection
The M684-E is designed as ip68 male female connectors for quick and easy connection. As waterproof inline connectors, they enable smooth plug-and-play use in outdoor wiring and lighting systems.
Screwless Installation Design
These male female connector for LED lights feature a tool-free structure, allowing fast assembly without screws. Ideal for efficient installation in outdoor electrical projects.
Adaptable Cable Range
Supports M20 cable sizes (4–8mm / 6–11mm) with 2–3 PIN options. These ip68 male female connectors provide flexible use across different waterproof inline connectors applications.
Built for Harsh Conditions
Made from UL94V-2 flame-retardant material, these waterproof inline connectors operate reliably from -40℃ to +105℃, ensuring long-term outdoor durability.
Certified for Global Use
With ENEC, CE, UKCA, ETL, NSW, CB, and RoHS approvals, these male female connector for LED lights are suitable for various outdoor lighting and wiring installations.
Looking for reliable ip68 male female connectors for your project?
Contact our team today for pricing, samples, or OEM customization. Send Inquiry Now
Contact our team today for pricing, samples, or OEM customization. Send Inquiry Now

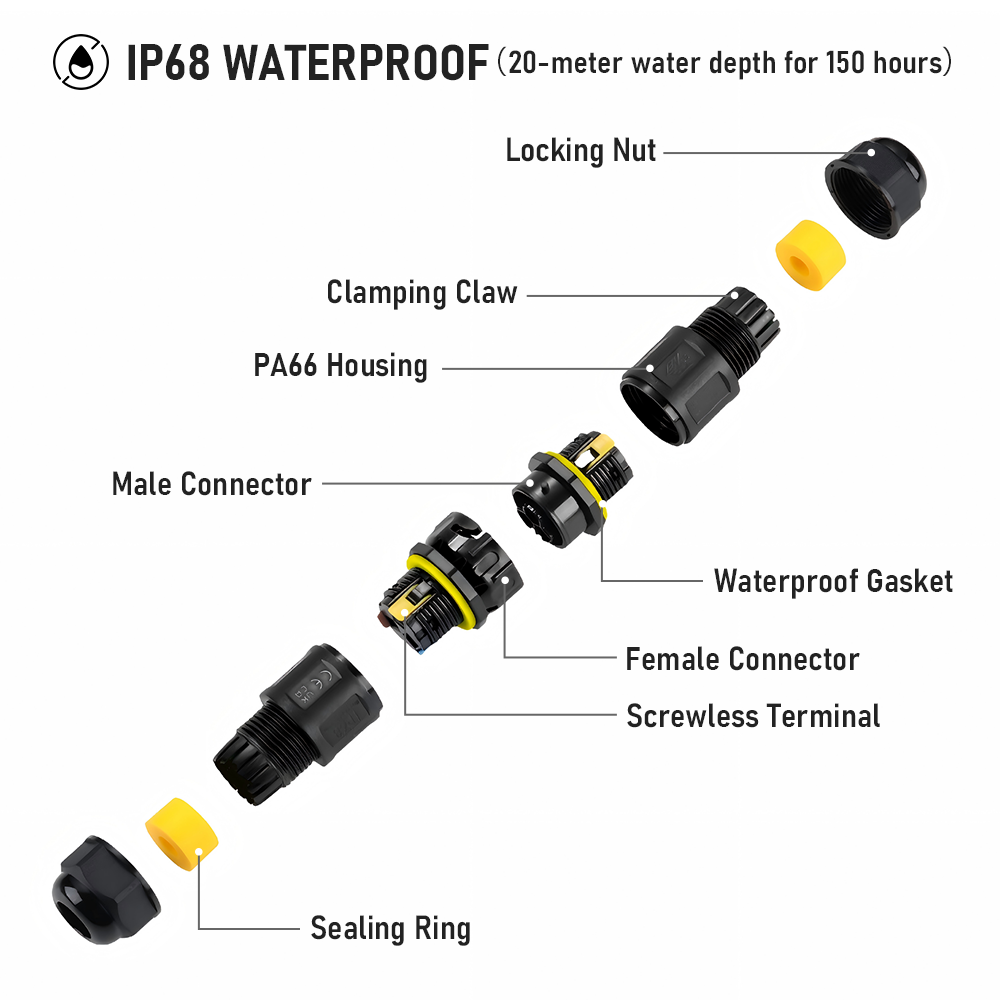

Product Parameters
Item | Specification |
Model | M684-E |
IP Rating | IP68 |
Terminal | 2Pin/3Pin |
| Wiring Method | Male Female Plug & Screwless Type |
Contact Material | Copper |
Housing Material | Fire retardant UL94V-2 |
Rated Output | IEC/NSW: 24A 450VAC ETL: 10A 300VAC |
Rated Connecting Capacity | European: 0.5-2.5mm² Australian: 0.5-2.5mm² American: SJOW 14-18 AWG |
| Available Cable Diameter | M20 (4-8mm/6-11mm) |
Working Temperature | -40℃ to+105℃ |
Waterproof Testing | 20m depth for 150 hours |
| Product Size | 110.3*25mm |
| Certification | ENEC, CE, UKCA, ETL, NSW, CB, RoHS |
| Applications | underwater, underground, outdoor electrical connection |
Need technical support or samples? We can help you choose the right ip68 male female connectors. Contact Us for Samples!
Certification
Installation Instructions
Step 1
Unscrew the nut covers on both ends and remove the internal quick connector.
Step 2
Thread the cable through the nut body and lift the lever.
Step 3
Insert the wires into the corresponding terminals and press the lever to lock the wires.
Step 4
Tighten the cable glands on both ends to complete the waterproof sealing.
Applications
Outdoor Lighting
Perfect for garden lights, landscape lighting, and backyard electrical systems.
Industrial Installations
Suitable for street lighting, stadium lighting, and outdoor electrical equipment.
Security Systems
Used in outdoor surveillance camera power connections and waterproof electrical boxes.
Solar Systems
Reliable connector solution for solar lighting and photovoltaic installations.
Company Profile
Production Capacity
Equipped with fully automated injection molding machines and assembly lines, delivering a monthly output of 500,000 units.CustomOEM/ODM solutions are supported to meet diverse client specifications.
Quality Assurance
Waterproof testing( 20m depth/150h), high-voltage resistance (2750V),and flame-retardant certification (V0/2 standards). All processes adhere to industrial safety and durability benchmarks.
Warehouse Storage
5000m² warehouse to keep enough materials in stock, ample warehousesize for efficient and speedy shipments, your orders deliveried promptly.
Our Advantages
Service Policy Overview
01 Pre-Sales Support
Technical specifications and product samples are guaranteed to be provided within 24 hours, ensuring rapid decision-making for clients.
02 Operational Response
Global 24x7 customer support delivers real-time tech and logistics assistance. Expedite orders ship in 7-10 days via automated production.
03 Post-Sales Warraty
A comprehensive 3-year warranty is offered, coveringnon human-induced defectsin materials or manufacturing.
Product Custiomization Solution
Custom Packaging
Diverse retail-ready designs tailored for supermarkets, hardware stores,and bulk distribution.
OEM Branding Services
Professional private-label manufacturing with precision logo imprintingfor brand identityenhancement.
Functional Expansion
Flexible integration of modular terminals and adaptable configurationsto meet specialized requirements.
Global Shipping & Compliance
Express Air Freight: DHL/FedEx delivery to Europe/US within 5-7 business days.
FCL Ocean Shipping: Full container load transit in 30 days.
Customs Clearance Support: Full documentation package including Certificate of Origin and export declarations for seamless import compliance.
FAQ
1.How to select the right IP rating?
IP68 is suitable for outdoor use such as garden or underground lighting, offering full dust sealing and strong water protection for electrical connections.
2.Is installation tool-free?
Yes, waterproof inline connectors with screwless design allow quick installation without tools. Contact us for instructions if needed.
3.Are customization options available?
Yes, ip68 male female connectors can be customized in branding, packaging, sizes, terminal positions (2P–12P), and materials. MOQ is 500 units.
4.What certifications do you provide?
All products meet ETL, ENEC, UKCA, NSW, SAA, CB, CE, and RoHS standards. Reports can be provided upon request.
5.Logistics & packaging details?
Global shipping via express, air, or sea. Major regions can be delivered within 15 days. Packaging ensures safe transport.
6.After-sales service policy?
30-day return or exchange for non-human damage with a 3-year warranty. Support is available within 24 hours via Email or WhatsApp.
