Model No: M685-E
IP68 Waterproof Outdoor Connector Male Female Wire Connector
Wiring Method: Male Female Plug & Screwless Type
IP Rating: IP68
Electrical Rating: 32A 450V
Pins: 2pin/3pin/4pin/5pin
Wire Range: 0.5-4.0mm²
Available Cable Diameter: 4-8mm/8-12mm/10-14mm
Applications: Underwater, Underground, Outdoor Lighting, Solar Systems, Security Systems
IP Rating: IP68
Electrical Rating: 32A 450V
Pins: 2pin/3pin/4pin/5pin
Wire Range: 0.5-4.0mm²
Available Cable Diameter: 4-8mm/8-12mm/10-14mm
Applications: Underwater, Underground, Outdoor Lighting, Solar Systems, Security Systems
minimum order :
1 piece
Subscribe to our Newsletter
Key Features
IP68 Waterproof Protection
The waterproof outdoor connector are rated IP68, ensuring stable performance in underwater and underground environments.
Certified Global Standards
The waterproof outdoor connector are certified with ENEC, CE, UKCA, ETL, NSW, CB, and RoHS, ensuring reliable compliance for global electrical applications.
Screwless Plug Design
The waterproof outdoor connector use male female plug with screwless type wiring for fast installation and easy field maintenance.
Copper Contact Stability
The waterproof outdoor connector are built with copper contact material to ensure stable conductivity and long-term electrical reliability.
Lighting Connection Use
The waterproof outdoor connector function as low voltage lighting connector and also work as male female wire connector for outdoor lighting and power systems.
Looking for reliable waterproof outdoor connectors for your project?
Contact our team today for pricing, samples, or OEM customization. Send Inquiry Now
Contact our team today for pricing, samples, or OEM customization. Send Inquiry Now
Product Parameters
Item | Specification |
Model | M685-E |
IP Rating | IP68 |
Terminal | 2Pin/3Pin/4Pin/5Pin |
| Wiring Method | Male Female Plug & Screwless Type |
Contact Material | Copper |
Housing Material | Fire retardant UL94V-2 |
Rated Output | IEC/NSW: 32A 450VAC ETL: 18A 300VAC |
Rated Connecting Capacity | European: 0.5-4.0mm² Australian: 0.5-4.0mm² American: SJOW 12-14 AWG |
| Available Cable Diameter | M25 (4-8mm/8-12mm/10-14mm) |
Working Temperature | -40℃ to+105℃ |
Waterproof Testing | 20m depth for 150 hours |
| Product Size | 131.8*31.5mm |
| Certification | ENEC, CE, UKCA, ETL, NSW, CB, RoHS |
| Applications | underwater, underground, outdoor electrical connection |
Need technical support or samples? We can help you choose the right ip68 waterproof outdoor connectors. Contact Us for Samples!
Certification

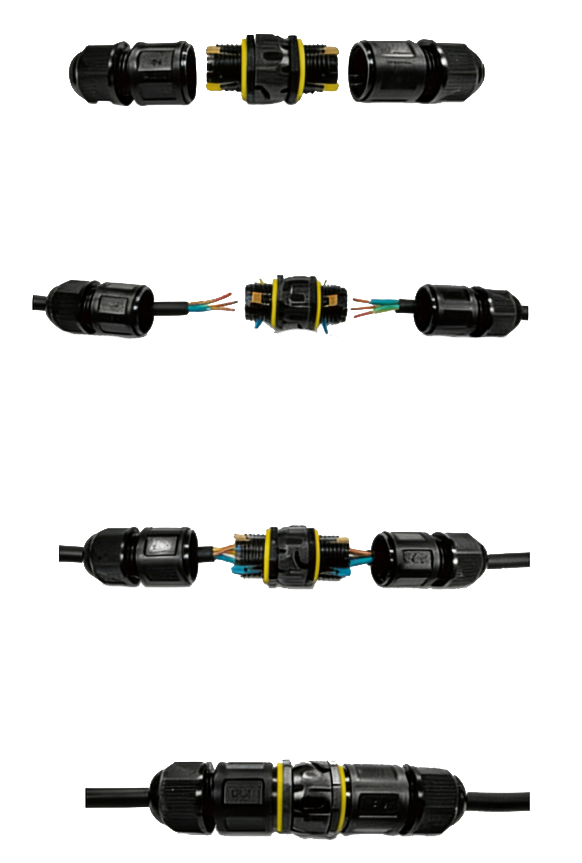

Installation Instructions
Step 1
Unscrew the nut covers on both ends and remove the internal quick connector.
Step 2
Thread the cable through the nut body and lift the lever.
Step 3
Insert the wires into the corresponding terminals and press the lever to lock the wires.
Step 4
Tighten the cable glands on both ends to complete the waterproof sealing.
Applications

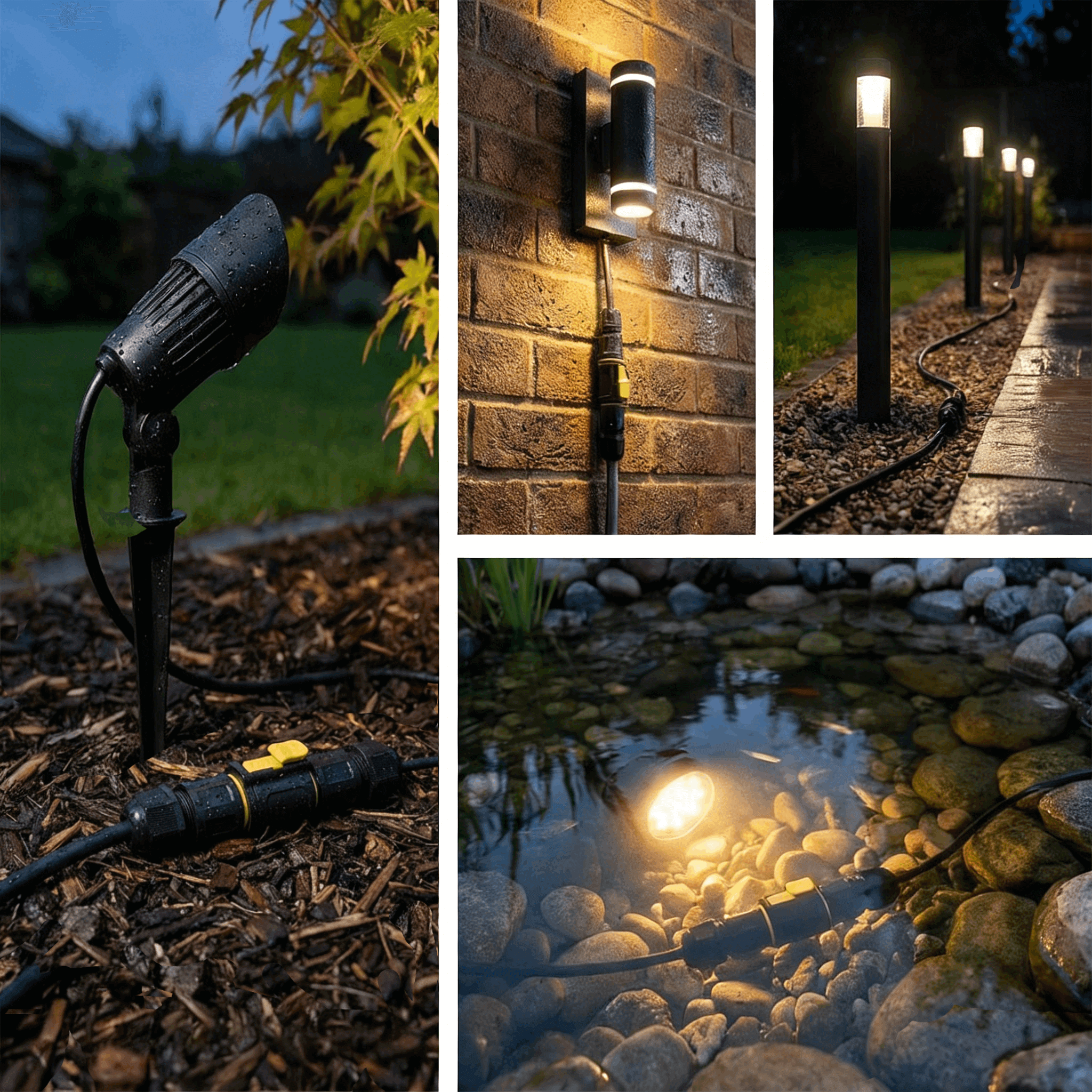

Outdoor Lighting
Perfect for garden lights, landscape lighting, and backyard electrical systems.

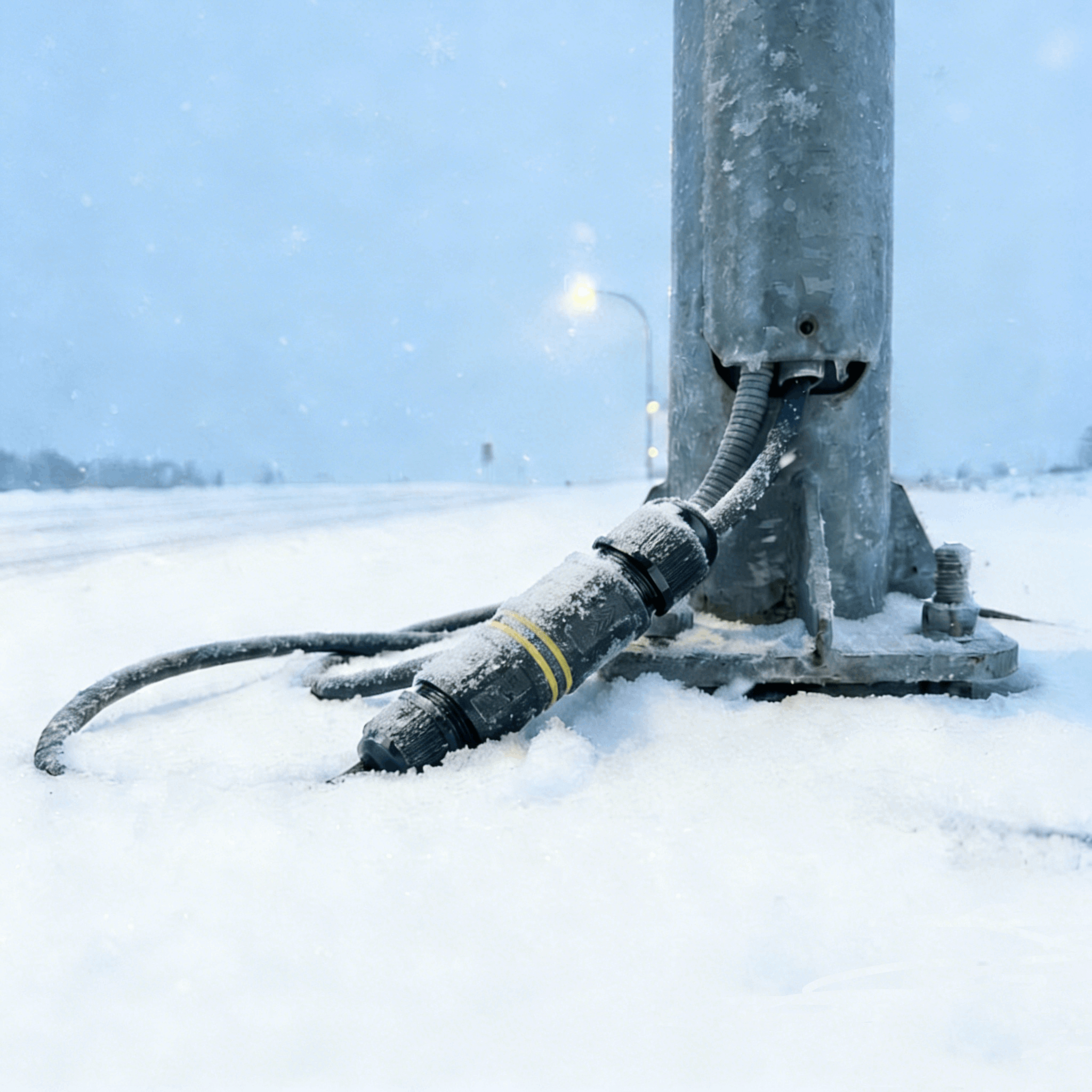

Industrial Installations
Suitable for street lighting, stadium lighting, and outdoor electrical equipment.
Security Systems
Used in outdoor surveillance camera power connections and waterproof electrical boxes.

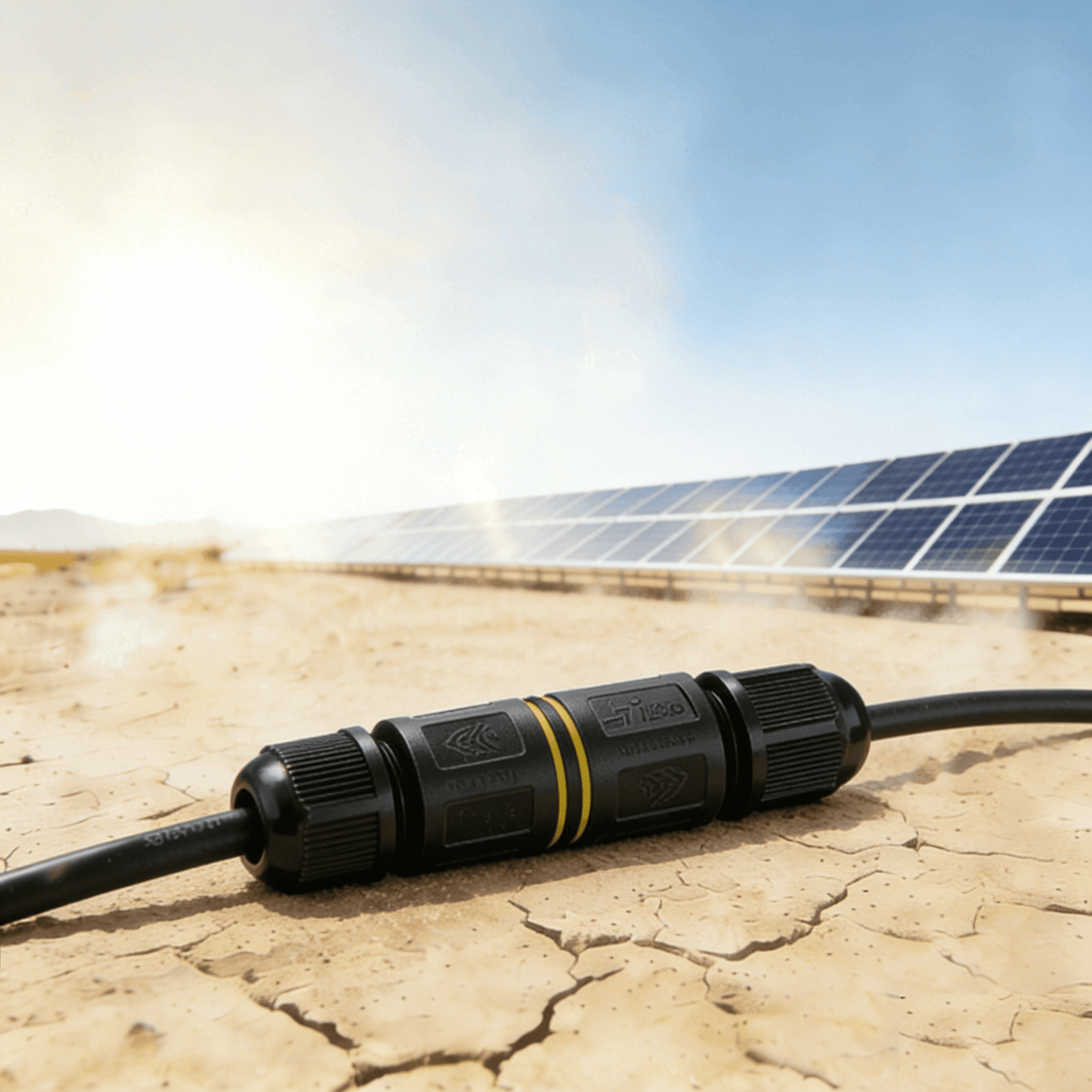

Solar Systems
Reliable connector solution for solar lighting and photovoltaic installations.
Company Profile

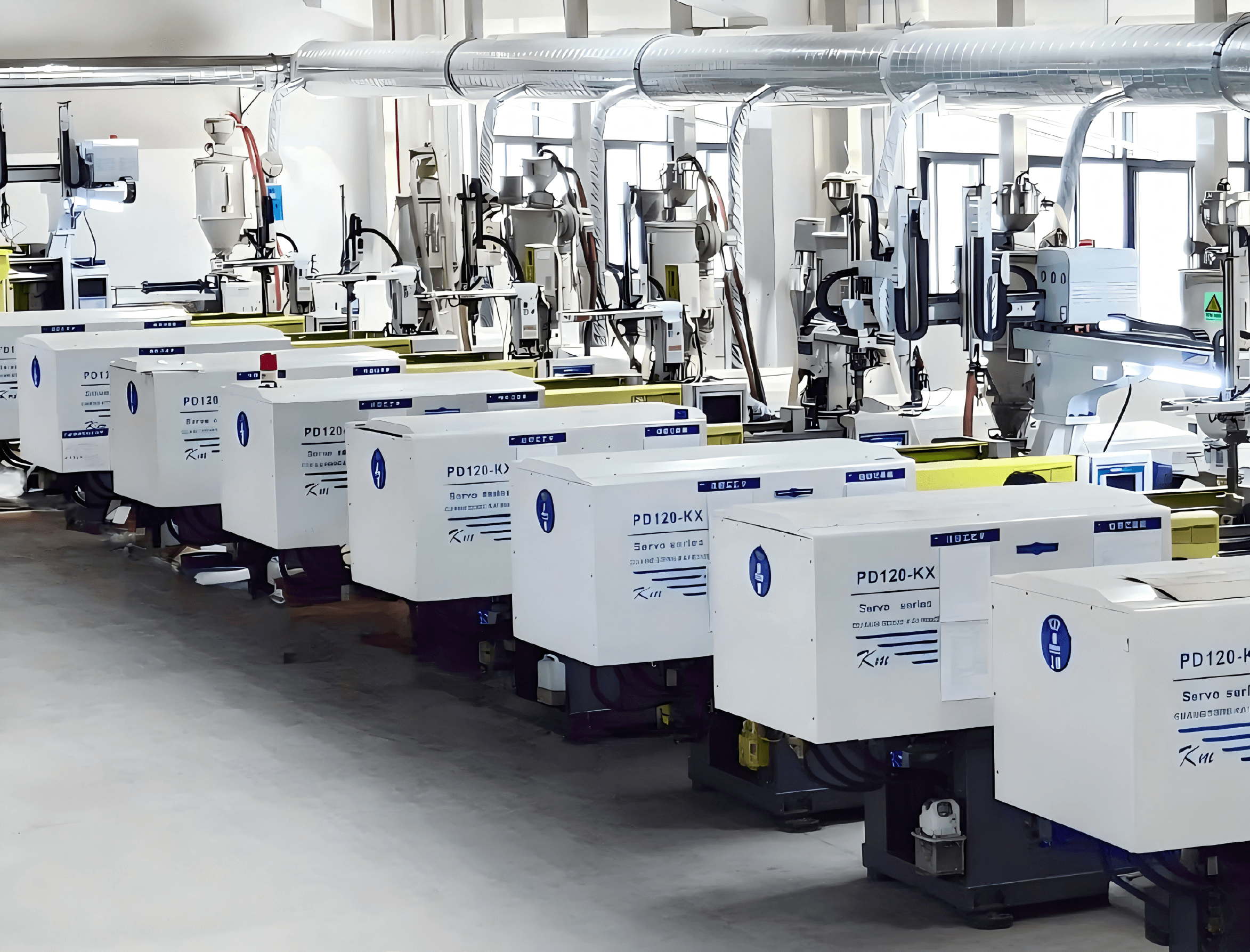

Production Capacity
Equipped with fully automated injection molding machines and assembly lines, delivering a monthly output of 500,000 units.CustomOEM/ODM solutions are supported to meet diverse client specifications.
Quality Assurance

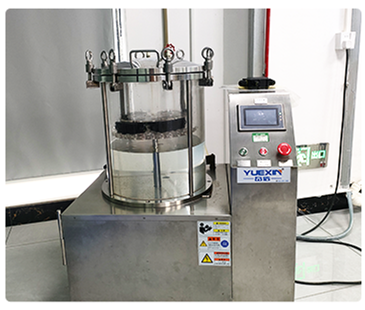

Waterproof testing( 20m depth/150h), high-voltage resistance (2750V),and flame-retardant certification (V0/2 standards). All processes adhere to industrial safety and durability benchmarks.

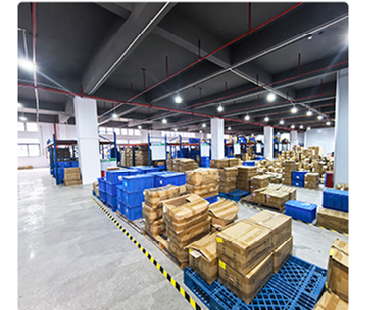

Warehouse Storage
5000m² warehouse to keep enough materials in stock, ample warehousesize for efficient and speedy shipments, your orders deliveried promptly.
Our Advantages
Service Policy Overview
01 Pre-Sales Support
Technical specifications and product samples are guaranteed to be provided within 24 hours, ensuring rapid decision-making for clients.
02 Operational Response
Global 24x7 customer support delivers real-time tech and logistics assistance. Expedite orders ship in 7-10 days via automated production.
03 Post-Sales Warraty
A comprehensive 3-year warranty is offered, coveringnon human-induced defectsin materials or manufacturing.
Product Custiomization Solution
Custom Packaging
Diverse retail-ready designs tailored for supermarkets, hardware stores,and bulk distribution.
OEM Branding Services
Professional private-label manufacturing with precision logo imprintingfor brand identityenhancement.
Functional Expansion
Flexible integration of modular terminals and adaptable configurationsto meet specialized requirements.
Global Shipping & Compliance
Express Air Freight: DHL/FedEx delivery to Europe/US within 5-7 business days.
FCL Ocean Shipping: Full container load transit in 30 days.
Customs Clearance Support: Full documentation package including Certificate of Origin and export declarations for seamless import compliance.
FAQ
1.How to select the right IP rating?
IP68 is suitable for outdoor use such as garden or underground lighting, offering full dust sealing and strong water protection for electrical connections.
2.Is installation tool-free?
Yes, this waterproof outdoor connector with screwless design allow quick installation without tools. Contact us for instructions if needed.
3.Are customization options available?
Yes, this waterproof outdoor connector can be customized in branding, packaging, sizes, terminal positions (2P–12P), and materials. MOQ is 500 units.
4.What certifications do you provide?
All products meet ETL, ENEC, UKCA, NSW, SAA, CB, CE, and RoHS standards. Reports can be provided upon request.
5.Logistics & packaging details?
Global shipping via express, air, or sea. Major regions can be delivered within 15 days. Packaging ensures safe transport.
6.After-sales service policy?
30-day return or exchange for non-human damage with a 3-year warranty. Support is available within 24 hours via Email or WhatsApp.
