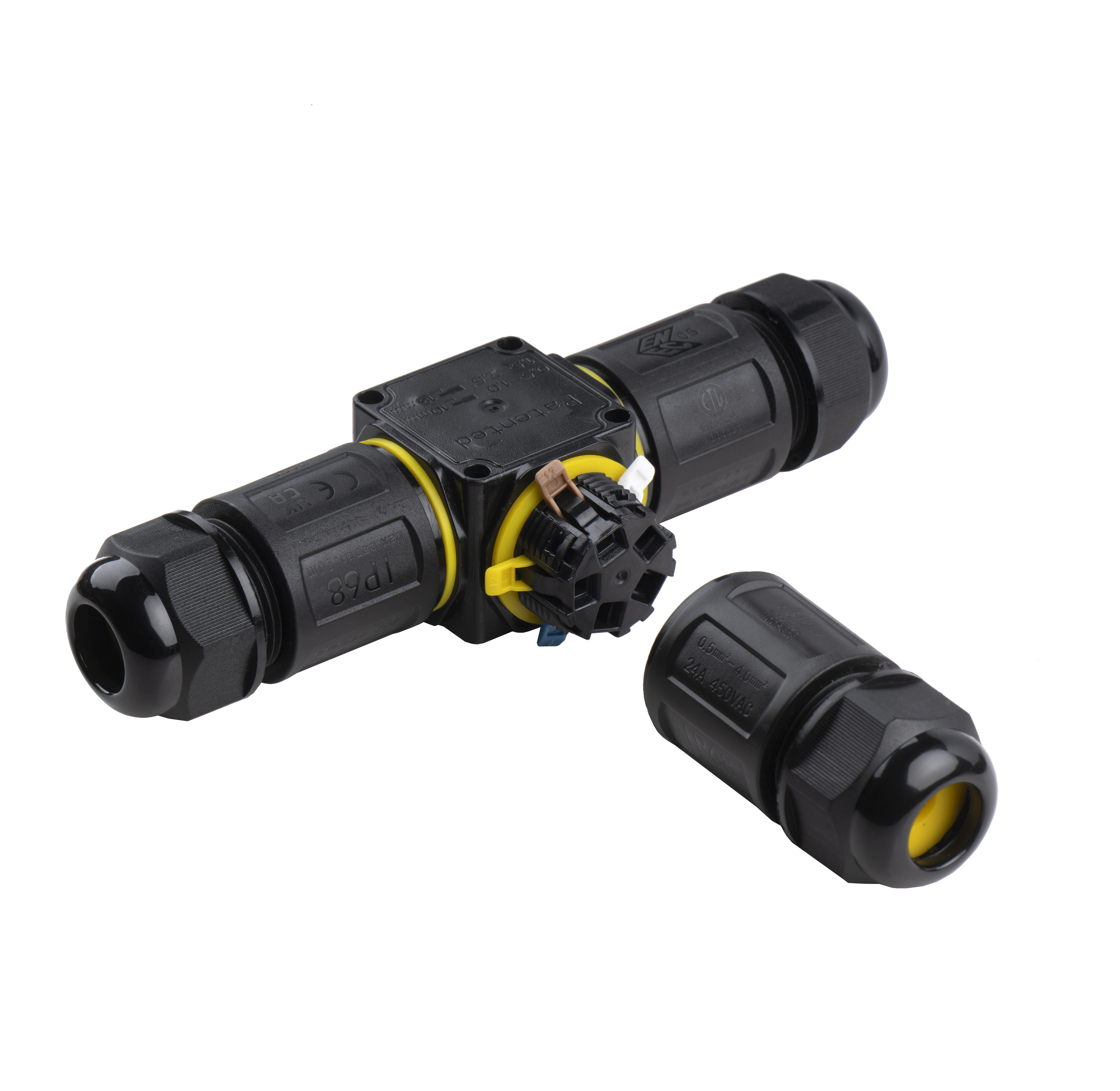

Model No: M685-TE 2-5pin
Waterproof T Splice Connector T Tap Quick Splice Wire Connector
Wiring Method: Screwless Type
IP Rating: IP68
Electrical Rating: 32A 450V
Pins: 2pin/3pin/4pin/5pin
Wire Range: 0.5-4.0mm²
Available Cable Diameter: 4-8mm/8-12mm/10-14mm
Applications: Underwater, Underground, Outdoor Lighting, Solar Systems, Security Systems
IP Rating: IP68
Electrical Rating: 32A 450V
Pins: 2pin/3pin/4pin/5pin
Wire Range: 0.5-4.0mm²
Available Cable Diameter: 4-8mm/8-12mm/10-14mm
Applications: Underwater, Underground, Outdoor Lighting, Solar Systems, Security Systems
minimum order :
1 piece
Subscribe to our Newsletter
Key Features
IP68 Waterproof, Dustproof, and UV-Resistant
M685-TE waterproof t splice connector provide IP68-level protection, tested to 20m depth for 150 hours. These t tap quick splice wire connector resist dust, water, and UV aging, ensuring long-lasting reliability for landscape wire connector installations.
Tool-Free Quick Wiring
These t tap quick splice wire connector feature screwless, tool-free terminals, allowing fast and efficient connections. The M685-TE makes wiring multiple waterproof t splice connector and landscape wire connector quick and effortless.
Reliable Three-Way Distribution
As 3way connector, M685-TE supports stable T-type branching, enabling multiple t tap quick splice wire connector and landscape wire connector installations in outdoor, garden, and landscape lighting projects.
Fire-Retardant and Weather-Resistant Materials
Constructed from UL94V-2 fire-retardant housing, these waterproof t splice connector and t tap quick splice wire connector withstand temperatures from -40℃ to +105℃ and resist UV aging for long-term outdoor performance.
Certified for International Projects
The waterproof t splice connector, t tap quick splice wire connector, and landscape wire connector are fully certified with ENEC, CE, UKCA, ETL, NSW, CB, and RoHS, meeting global standards for professional outdoor electrical and lighting applications.
Looking for reliable IP68 waterproof t splice connector for your project?
Contact our team today for pricing, samples, or OEM customization. Send Inquiry Now
Contact our team today for pricing, samples, or OEM customization. Send Inquiry Now
Product Parameters
Item | Specification |
Model | M685-TE |
IP Rating | IP68 |
Terminal | 2Pin/3Pin/4Pin/5Pin |
| Wiring Method | Screwless Type |
Contact Material | Copper |
Housing Material | Fire retardant UL94V-2 |
Rated Output | IEC/NSW: 32A 450VAC ETL: 18A 300VAC |
Rated Connecting Capacity | European: 0.5-4.0mm² Australian: 0.5-4.0mm² American: SJOW 12-14 AWG |
| Availble Cable Diameter | M25 (4-8mm/8-12mm/10-14mm) |
Working Temperature | -40℃ to+105℃ |
Waterproof Testing | 20m depth for 150 hours |
| Product Size | 149*98*31mm |
| Certification | ENEC, CE, UKCA, ETL, NSW, CB, RoHS |
| Applications | underwater, underground, outdoor electrical connection |
Need technical support or samples? We can help you choose the right IP68 waterproof t splice connector. Contact Us for Samples!
Certification
Installation Instructions
Step 1
Unscrew the nut covers on both ends and remove the internal quick connector.
Step 2
Thread the cable through the nut body and lift the lever.
Step 3
Insert the wires into the corresponding terminals and press the lever to lock the wires.
Step 4
Tighten the cable glands on both ends to complete the waterproof sealing.
Applications
Outdoor Lighting
Perfect for garden lights, landscape lighting, and backyard electrical systems.
Industrial Installations
Suitable for street lighting, stadium lighting, and outdoor electrical equipment.
Security Systems
Used in outdoor surveillance camera power connections and waterproof electrical boxes.
Solar Systems
Reliable connector solution for solar lighting and photovoltaic installations.
Company Profile
Production Capacity
Equipped with fully automated injection molding machines and assembly lines, delivering a monthly output of 500,000 units.CustomOEM/ODM solutions are supported to meet diverse client specifications.
Quality Assurance
Waterproof testing( 20m depth/150h), high-voltage resistance (2750V),and flame-retardant certification (V0/2 standards). All processes adhere to industrial safety and durability benchmarks.
Warehouse Storage
5000m² warehouse to keep enough materials in stock, ample warehousesize for efficient and speedy shipments, your orders deliveried promptly.
Our Services
Service Policy Overview
01 Pre-Sales Support
Technical specifications and product samples are guaranteed to be provided within 24hours, ensuring rapid decision-making for clients.
02 Operational Response
Global 24x7 customer support delivers real-time tech and logistics assistance. Expedite orders ship in 7-10 days via automated production.
03 Post-Sales Warraty
A comprehensive 3-year warranty is offered, coveringnon human-induced defectsin materials or manufacturing.
Product Custiomization Solution
Custom Packaging
Diverse retail-ready designs tailored for supermarkets, hardware stores,and bulk distribution.
OEM Branding Services
Professional private-label manufacturing with precision logo imprintingfor brand identityenhancement.
Functional Expansion
Flexible integration of modular terminals and adaptable configurationsto meet specialized requirements.
Global Shipping & Compliance
Express Air Freight: DHL/FedEx delivery to Europe/US within 5-7 business days.
FCL Ocean Shipping: Full container load transit in 30 days.
Customs Clearance Support: Full documentation package including Certificate of Origin and export declarations for seamless import compliance.
FAQ
1.How to choose the IP rating?
The IP68 waterproof t splice connector is ideal for outdoor use, including garden lights and buried lamps. It provides full dust protection and high-pressure water resistance for reliable outdoor wiring.
2. Professional Tools Required for Installation?
No, the waterproof t splice connector feature a screw-free design for fast, tool-free installation. Contact us for detailed instructions or technical support.
3.Can it be customized?
Yes, you can customize branding, packaging, multiple sizes, terminal positions (2P–12P), and materials (PA/PC). Minimum order quantity is 500 units.
4. International Compliance Certifications?
The IP68 waterproof t splice connector comply with ETL, ENEC, UKCA, NSW, SAA, CB CE and RoHs standards. Certification numbers and test reports available upon request.
5. Logistics & Packaging Details?
Ship globally via express, air, or sea. Expedited delivery within 15 days is available for major regions. Packaging provides full protection and supports palletized bulk transport.
6. After-Sales Service Policy?
Non-human damage: 30-day return/exchange policy with 3-year warranty.
Technical support: 24-hour response via Email or WhatsApp, including installation videos and diagrams.
