Model No: M684-XS
IP68 Waterproof Crimp Splice Connectors 4 Way Outdoor Lighting Connector
Wiring Method: Screw Type
IP Rating: IP68
Electrical Rating: 24A 450V

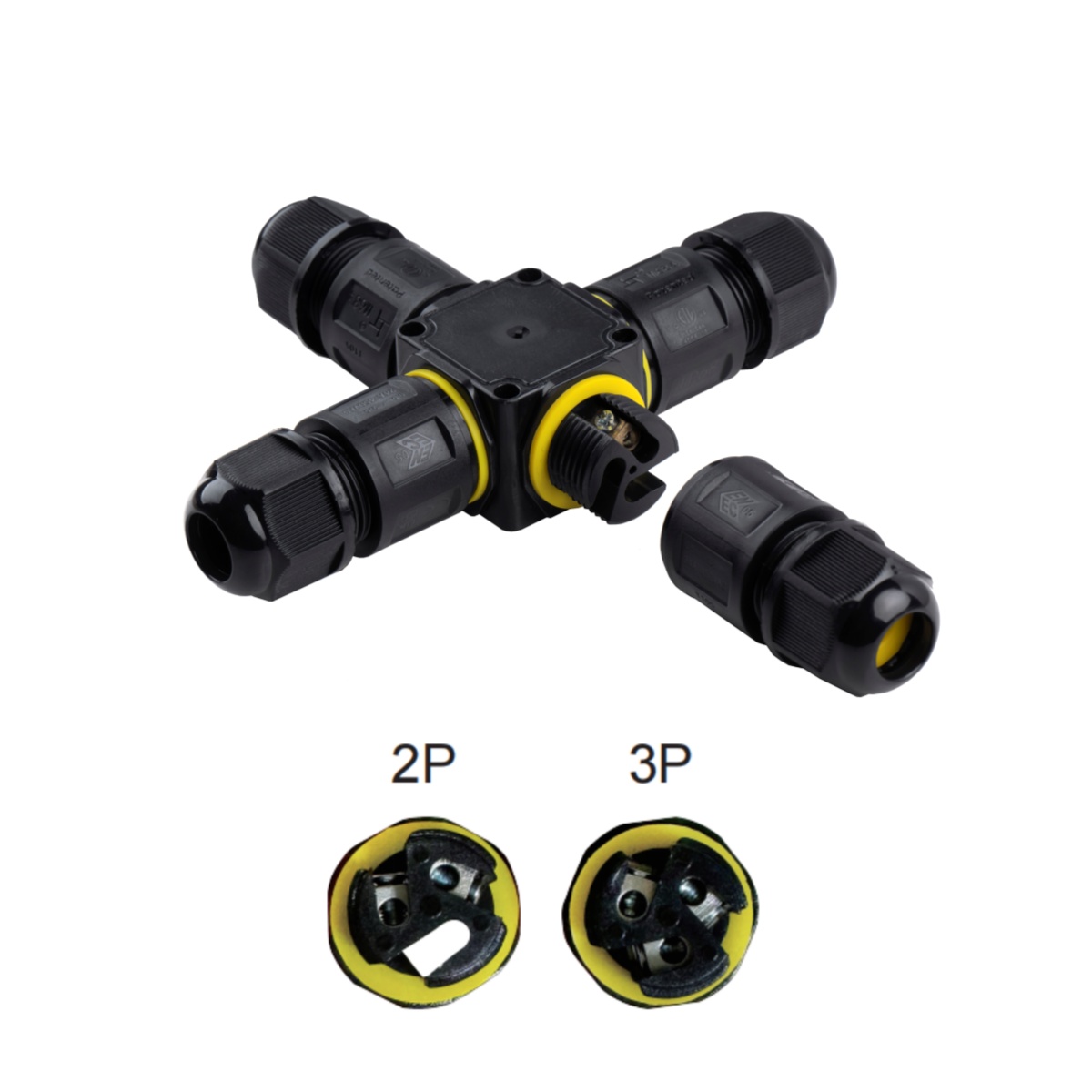

Pins: 2pin/3pin
Wire Range: 0.5-2.5mm²

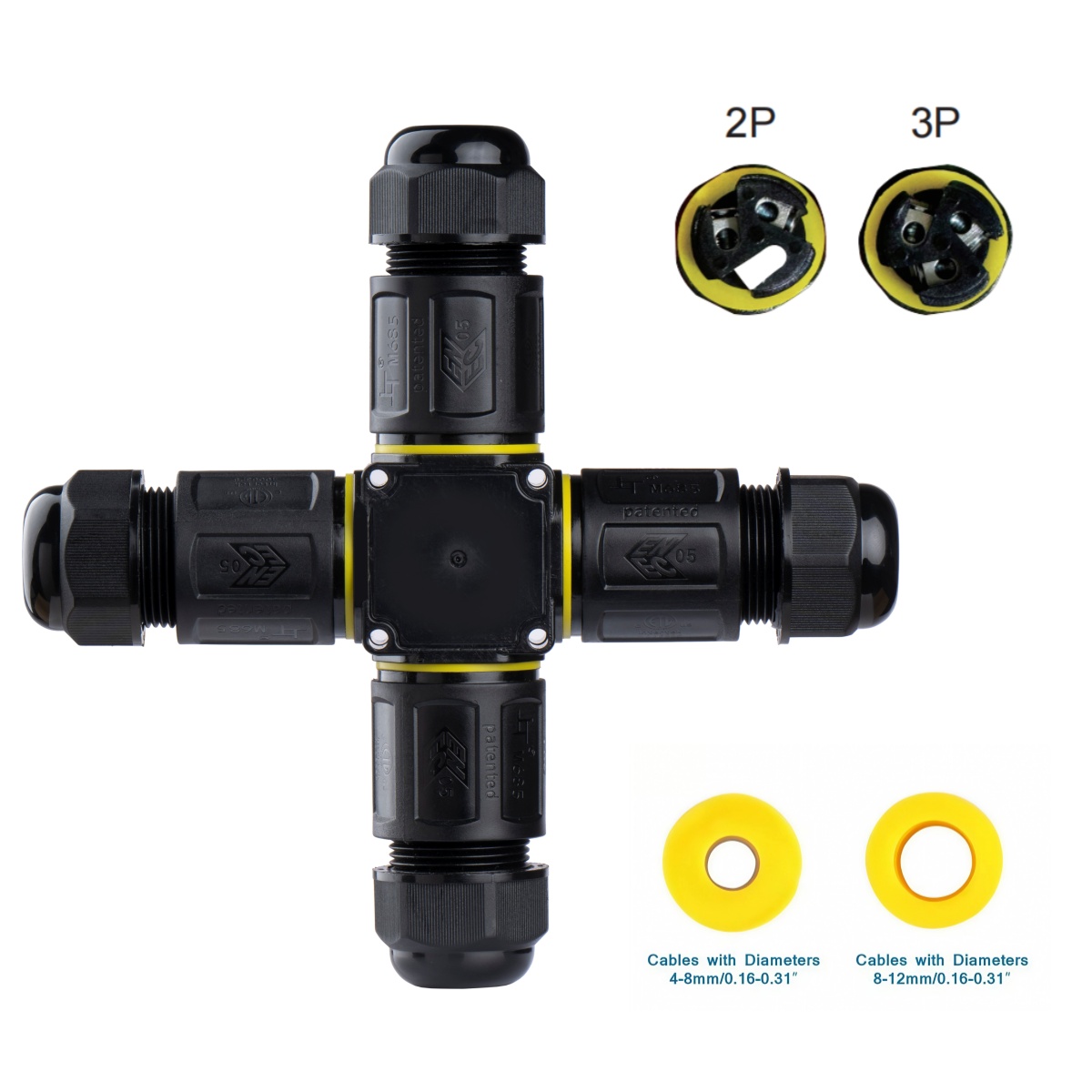

Available Cable Diameter: 4-8mm/6-11mm
Applications: Underwater, Underground, Outdoor Lighting, Solar Systems, Security Systems
IP Rating: IP68
Electrical Rating: 24A 450V
Pins: 2pin/3pin
Wire Range: 0.5-2.5mm²
Available Cable Diameter: 4-8mm/6-11mm
Applications: Underwater, Underground, Outdoor Lighting, Solar Systems, Security Systems
minimum order :
1 piece
Subscribe to our Newsletter
Key Features
IP68 Protection

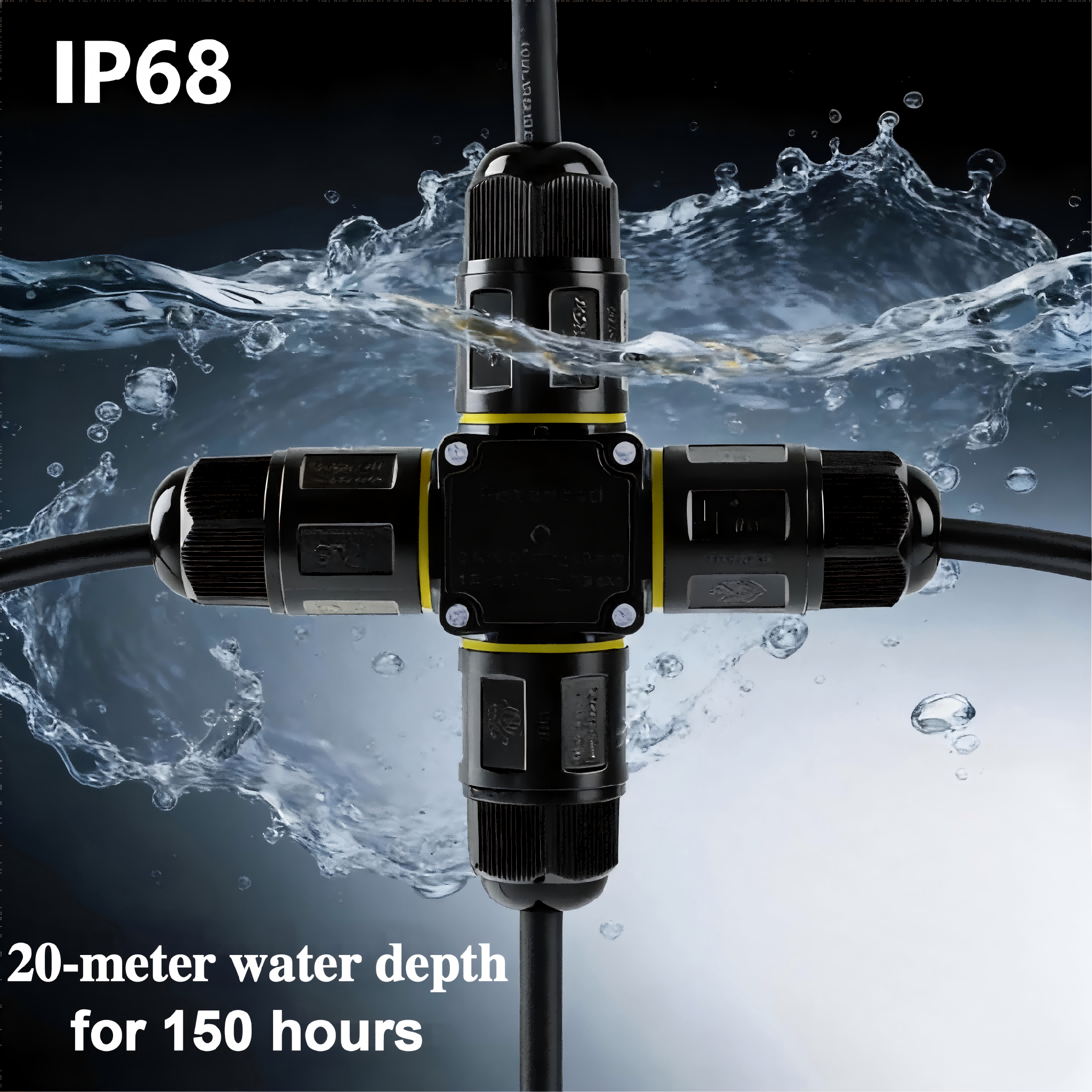

The waterproof crimp splice connector provide full waterproof and dustproof performance, UV-resistant and anti-aging, tested to 20m depth for 150 hours. The waterproof crimp splice connector ensures reliability in harsh outdoor conditions.
Durable & Fire-Retardant
Made with UL94V-2 fire-retardant material, the waterproof crimp splice connector operate from –40℃ to +105℃, maintaining safety and durability for outdoor and underground applications.
Secure Screw Terminal Design
The waterproof crimp splice connector feature a screw wire connection for 4-way layouts, ensuring stable electrical contact. It works seamlessly with outdoor lighting connector setups.
Versatile 4-Way Connection
Supports complex 4 way waterproof butt splice connector applications, making it ideal for outdoor lighting connector configurations and protected wiring installations.
Certified Compliance
The waterproof crimp splice connector meet ENEC, CE, UKCA, ETL, NSW, CB, and RoHS standards, providing trusted performance for professional electrical projects.
Looking for reliable ip68waterproof crimp splice connectors for your project?
Contact our team today for pricing, samples, or OEM customization. Send Inquiry Now
Contact our team today for pricing, samples, or OEM customization. Send Inquiry Now
Product Parameters
Item | Specification |
Model | M684-XS |
IP Rating | IP68 |
Terminal | 2Pin/3Pin |
| Wiring Method | Screw Type |
Contact Material | Copper |
Housing Material | Fire retardant UL94V-2 |
Rated Output | IEC/NSW: 24A 450VAC ETL: 10A 300VAC |
Rated Connecting Capacity | European: 0.5-2.5mm² Australian: 0.5-2.5mm² American: SJOW 14-18 AWG |
| Available Cable Diameter | M20 (4-8mm/6-11mm) |
Working Temperature | -40℃ to+105℃ |
Waterproof Testing | 20m depth for 150 hours |
| Product Size | 129*129*27mm |
| Certification | ENEC, CE, UKCA, ETL, NSW, CB, RoHS |
| Applications | underwater, underground, outdoor electrical connection |
Need technical support or samples? We can help you choose the right ip68 waterproof crimp splice connectors. Contact Us for Samples!
Certification

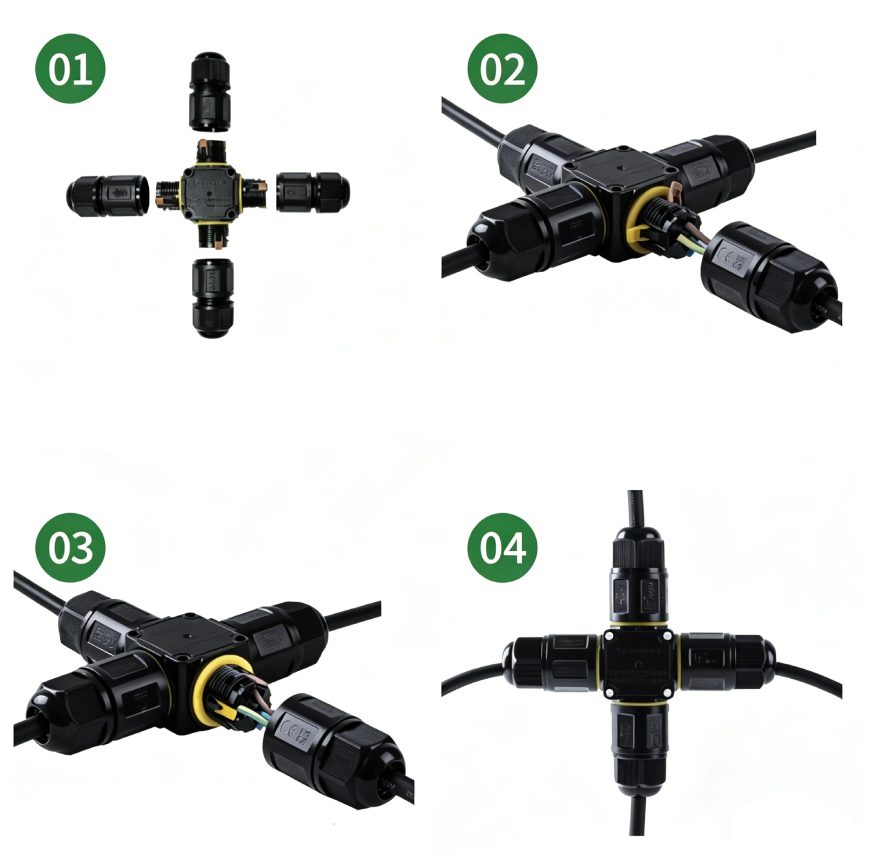

Installation Instructions
Step 1
Unscrew the nut covers on both ends and remove the internal quick connector.
Step 2
Thread the cable through the nut body and lift the lever.
Step 3
Insert the wires into the corresponding terminals and tighten the screw to lock the wires.
Step 4
Tighten the cable glands on both ends to complete the waterproof sealing.
Applications
Outdoor Lighting
Perfect for garden lights, landscape lighting, and backyard electrical systems.
Industrial Installations
Suitable for street lighting, stadium lighting, and outdoor electrical equipment.
Security Systems
Used in outdoor surveillance camera power connections and waterproof electrical boxes.
Solar Systems
Reliable connector solution for solar lighting and photovoltaic installations.
Company Profile
Production Capacity
Equipped with fully automated injection molding machines and assembly lines, delivering a monthly output of 500,000 units.CustomOEM/ODM solutions are supported to meet diverse client specifications.
Quality Assurance
Waterproof testing( 20m depth/150h), high-voltage resistance (2750V),and flame-retardant certification (V0/2 standards). All processes adhere to industrial safety and durability benchmarks.
Warehouse Storage
5000m² warehouse to keep enough materials in stock, ample warehousesize for efficient and speedy shipments, your orders deliveried promptly.
Our Services
Service Policy Overview
01 Pre-Sales Support
Technical specifications and product samples are guaranteed to be provided within 24 hours, ensuring rapid decision-making for clients.
02 Operational Response
Global 24x7 customer support delivers real-time tech and logistics assistance. Expedite orders ship in 7-10 days via automated production.
03 Post-Sales Warraty
A comprehensive 3-year warranty is offered, coveringnon human-induced defectsin materials or manufacturing.
Product Custiomization Solution
Custom Packaging
Diverse retail-ready designs tailored for supermarkets, hardware stores,and bulk distribution.
OEM Branding Services
Professional private-label manufacturing with precision logo imprintingfor brand identityenhancement.
Functional Expansion
Flexible integration of modular terminals and adaptable configurationsto meet specialized requirements.
Global Shipping & Compliance
Express Air Freight: DHL/FedEx delivery to Europe/US within 5-7 business days.
FCL Ocean Shipping: Full container load transit in 30 days.
Customs Clearance Support: Full documentation package including Certificate of Origin and export declarations for seamless import compliance.
FAQ
1.How to select the right IP rating?
The IP68 waterproof crimp splice connectors are ideal for outdoor and landscape lighting, providing full dust and water protection.
2.Do I need tools for installation?
Yes, the waterproof crimp splice connectors feature a screw-lock design and require tools. Contact us for detailed instructions or technical support.
3.Are customization options available?
Yes, you can customize branding, packaging, sizes, terminal positions (2P–12P), and materials. Minimum order 500 units.
4.What certifications do you provide?
Our IP68 waterproof crimp splice connectors meet ETL, ENEC, UKCA, NSW, SAA, CB, CE, and RoHS standards. Reports available on request.
5.Logistics & packaging details?
Global shipping via express/air/sea. Expedited delivery within 15 days tomajor regions. Comprehensive protective packaging with palletized bulktransport support.
6.After-sales service policy?
30-day return/exchange for non-human damage and 3-year warranty. Technical support available 24/7 with installation guides.
