Model No: M685-B 5pin
IP68 Ideal Push In Wire Connectors 5 Pin Waterproof Connector for Outdoor Lighting
Wiring Method: Screwless Type
IP Rating: IP68
Electrical Rating: 32A 450V
Wire Range: 0.5-4.0mm²
Available Cable Diameter: 4-8mm/8-12mm/10-14mm
Applications: Underwater , Underground, Outdoor Lighting, Solar Systems, Security Systems
IP Rating: IP68
Electrical Rating: 32A 450V
Wire Range: 0.5-4.0mm²
Available Cable Diameter: 4-8mm/8-12mm/10-14mm
Applications: Underwater , Underground, Outdoor Lighting, Solar Systems, Security Systems
minimum order :
1 piece
Subscribe to our Newsletter
Key Features重试 错误原因
IP68 Protection重试 错误原因
The 5 pin waterproof connectors deliver reliable waterproof and dustproof performance with UV-resistant and anti-aging properties, proven through a 20m depth for 150 hours immersion test to ensure long-term outdoor durability.重试 错误原因
Optimized for Multi-Pin Outdoor Wiring重试 错误原因
Designed specifically as 5 pin waterproof connectors, they support stable multi-circuit transmission and function effectively as waterproof connector for outdoor lighting used in gardens, façades, pathways, and other demanding exterior installations.重试 错误原因
Fast Push-In Connection Structure重试 错误原因
Built as ideal push in wire connectors, the 5 pin waterproof connectors enable tool-free wiring with a secure 2-way inline design, offering faster and safer installation for professional lighting and electrical projects.
Reliable Performance in Harsh Environments
The 5 pin waterproof connectors feature UL94V-2 flame-retardant materials and operate from –40℃ to +105℃, ensuring dependable performance for outdoor lighting systems exposed to temperature extremes or moisture.
Certified for Global Compliance
As ideal push in wire connectors and waterproof connector for outdoor lighting, they meet ENEC, CE, UKCA, ETL, NSW, CB, and RoHS requirements, supporting worldwide safety and industry standards.
Looking for reliable IP68 5 pin waterproof connectors for your project?
Contact our team today for pricing, samples, or OEM customization. Send Inquiry Now
Contact our team today for pricing, samples, or OEM customization. Send Inquiry Now
Product Parameters
Item | Specification |
Model | M685-B |
IP Rating | IP68 |
Terminal | 2Pin/3Pin/4Pin/5Pin |
| Wiring Method | Screwless Type |
Contact Material | Copper |
Housing Material | Fire retardant UL94V-2 |
Rated Output | IEC/NSW: 32A 450VAC ETL: 18A 300VAC |
Rated Connecting Capacity | European: 0.5-4.0mm² Australian: 0.5-4.0mm² American: SJOW 12-14 AWG |
| Available Cable Diameter | M25 (4-8mm/8-12mm/10-14mm) |
Working Temperature | -40℃ to +105℃ |
Waterproof Testing | 20m depth for 150 hours |
| Product Size | 117*29mm |
| Certification | ENEC, CE, UKCA, ETL, NSW, CB, RoHS |
| Applications | underwater, underground, outdoor electrical connection |
Need technical support or samples? We can help you choose the right IP68 5 pin waterproof connectors. Contact Us for Samples!
Certification
Installation Instructions

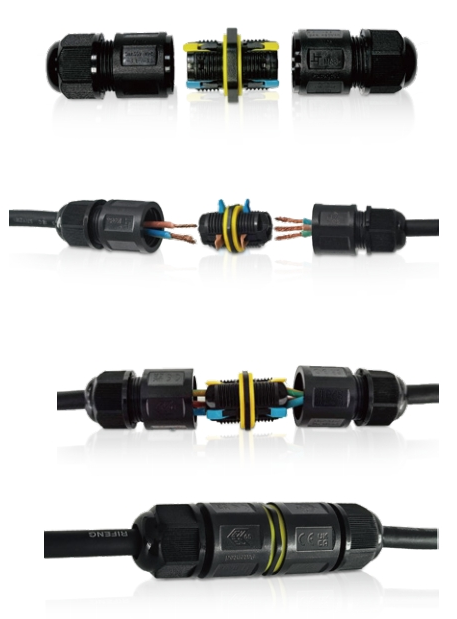

Step 1
