Model No: M684-T 3pin
3 Way Waterproof Cable Connector IP68 Underwater Connector
Wiring Method: Screwless Type
IP Rating: IP68
Electrical Rating: 24A 450V
Wire Range: 0.5-2.5mm²
Available Cable Diameter: 4-8mm/6-11mm
Applications: Underwater , Underground, Outdoor Lighting, Solar Systems, Security Systems
IP Rating: IP68
Electrical Rating: 24A 450V
Wire Range: 0.5-2.5mm²
Available Cable Diameter: 4-8mm/6-11mm
Applications: Underwater , Underground, Outdoor Lighting, Solar Systems, Security Systems
minimum order :
1 piece
Subscribe to our Newsletter
Key Features
Fast, Tool-Free T-Shaped Wiring
The M684-T features a quick-connect, tool-free design, making it ideal for outdoor systems requiring ip68 underwater connector solutions and projects that utilize 3 way waterproof cable connector structures.
3-Way T-Type Distribution for Lighting Systems
Its T-shaped 3-way layout enables efficient branching for landscape and architectural lighting, especially where multiple 3 way lighting connector configurations are needed.
Reliable Outdoor & Underwater Performance
With IP68 protection and UL94V-2 flame-retardant housing, the M684-T ensures long-term durability in harsh environments involving ip68 underwater connector applications and 3 way waterproof cable connector networks.

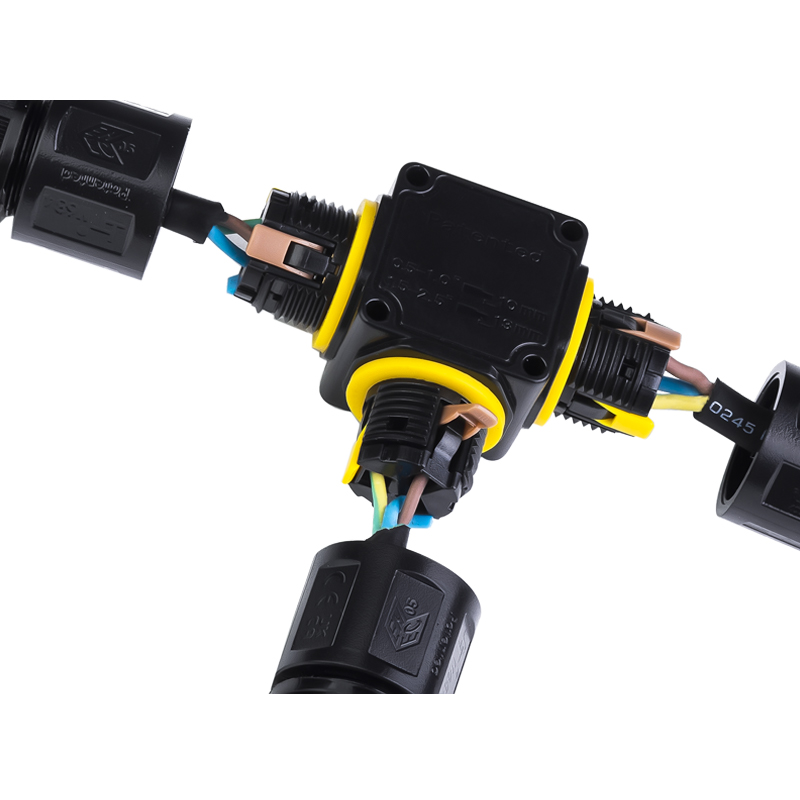

Secure & Stable Electrical Connections
The internal quick-clamp structure provides stable wiring without loose contacts, suitable for systems combining 3 way lighting connector assemblies and ip68 underwater connector groups.
Fully Certified for Global Projects
Certified with ENEC, CE, UKCA, ETL, NSW, CB, and RoHS, offering dependable compliance for engineering projects that use 3 way waterproof cable connector solutions and ip68 underwater connector installations.
Looking for reliable ip68 underwater connector for your project?
Contact our team today for pricing, samples, or OEM customization. Send Inquiry Now
Contact our team today for pricing, samples, or OEM customization. Send Inquiry Now

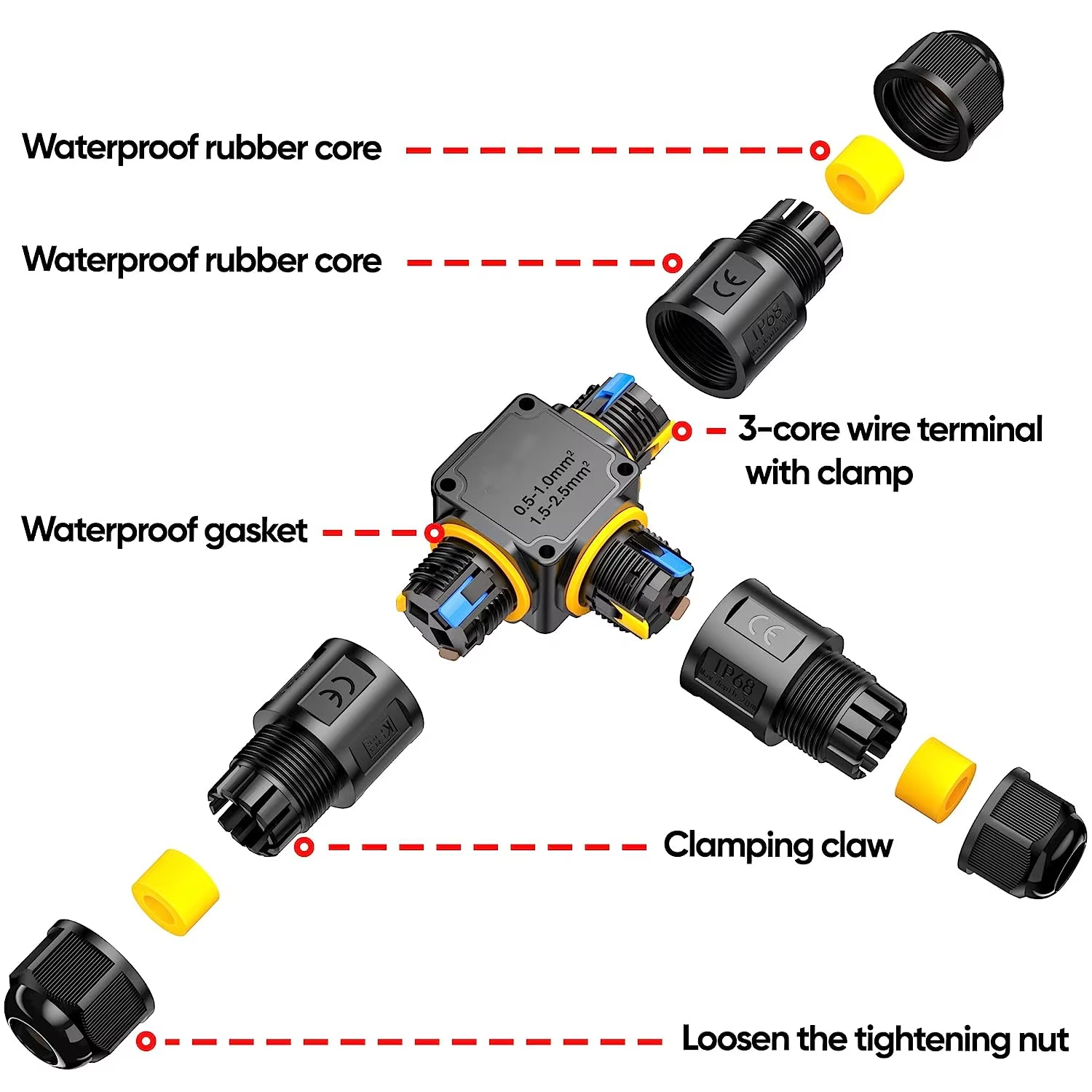

Product Parameters
Item | Specification |
Model | M684-T |
IP Rating | IP68 |
Terminal | 3Pin |
| Wiring Method | Screwless Type |
Contact Material | Copper |
Housing Material | Fire retardant UL94V-2 |
Rated Output | IEC/NSW: 24A 450VAC ETL: 10A 300VAC |
Rated Connecting Capacity | European: 0.5-2.5mm² Australian: 0.5-2.5mm² American: SJOW 14-18 AWG |
| Available Cable Diameter | M20 (4-8mm/6-11mm) |
Working Temperature | -40℃ to+105℃ |

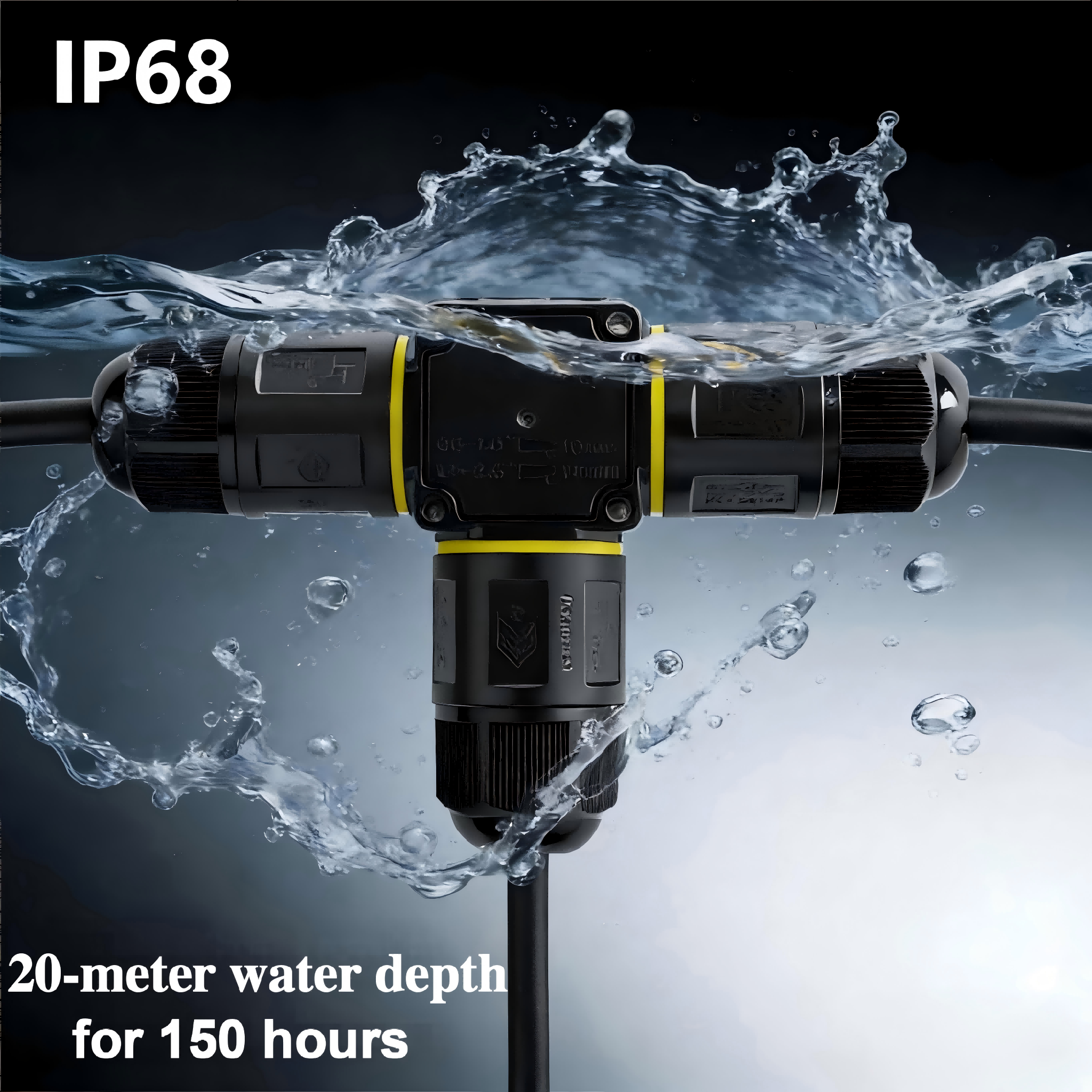

Waterproof Testing | 20m depth for 150 hours |
| Product Size | 129*87*27mm |
| Certification | ENEC, CE, UKCA, ETL, NSW, CB, RoHS |
| Applications | underwater, underground, outdoor electrical connection |
Need technical support or samples? We can help you choose the right ip68 underwater connector. Contact Us for Samples!
Certification

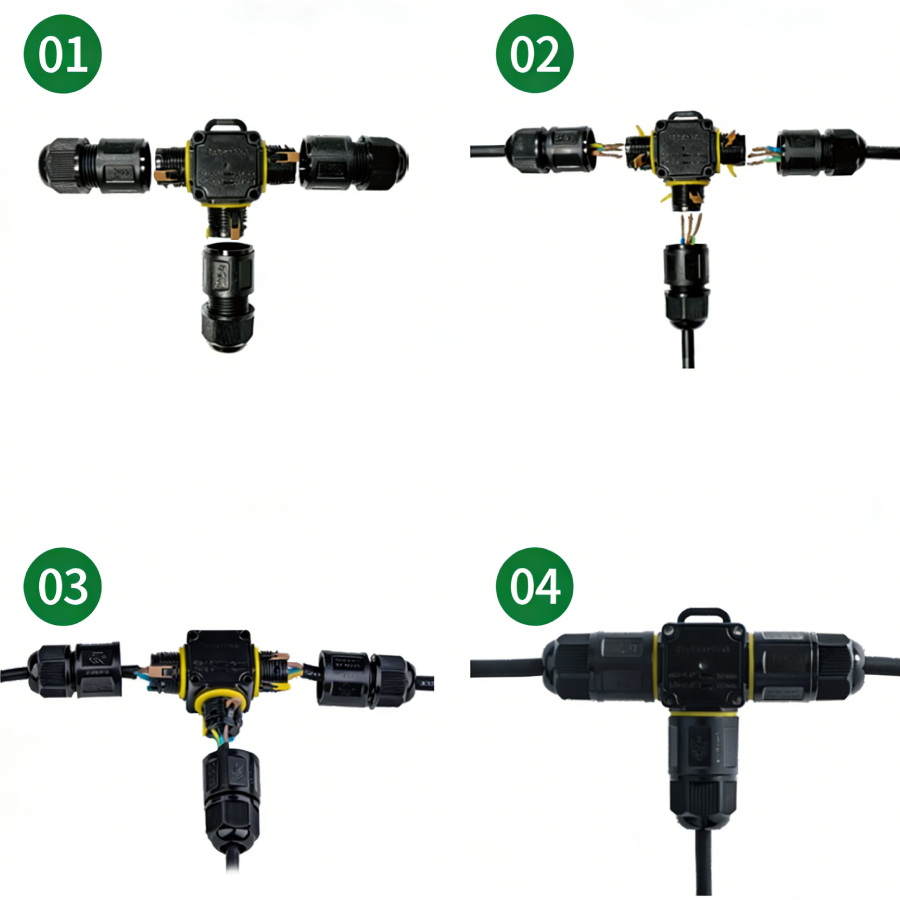

Installation Instructions
Step 1
Unscrew the nut covers on both ends and remove the internal quick connector.
Step 2
Thread the cable through the nut body and lift the lever.
Step 3
Insert the wires into the corresponding terminals and press the lever to lock the wires.
Step 4
Tighten the cable glands on both ends to complete the waterproof sealing.
Application
Outdoor Lighting
Perfect for garden lights, landscape lighting, and backyard electrical systems.
Industrial Installations
Suitable for street lighting, stadium lighting, and outdoor electrical equipment.
Security Systems
Used in outdoor surveillance camera power connections and waterproof electrical boxes.
Solar Systems
Reliable connector solution for solar lighting and photovoltaic installations.
Company Profile
Production Capacity
Equipped with fully automated injection molding machines and assembly lines, delivering a monthly output of 500,000 units.CustomOEM/ODM solutions are supported to meet diverse client specifications.
Quality Assurance
Waterproof testing( 20m depth/150h), high-voltage resistance (2750V),and flame-retardant certification (V0/2 standards). All processes adhere to industrial safety and durability benchmarks.
Warehouse Storage
5000m² warehouse to keep enough materials in stock, ample warehousesize for efficient and speedy shipments, your orders deliveried promptly.
Our Services
Service Policy Overview
01 Pre-Sales Support
Technical specifications and product samples are guaranteed to be provided within 24hours, ensuring rapid decision-making for clients.
02 Operational Response
Global 24x7 customer support delivers real-time tech and logistics assistance. Expedite orders ship in 7-10 days via automated production.
03 Post-Sales Warraty
A comprehensive 3-year warranty is offered, coveringnon human-induced defectsin materials or manufacturing.
Product Custiomization Solution
Custom Packaging
Diverse retail-ready designs tailored for supermarkets, hardware stores,and bulk distribution.
OEM Branding Services
Professional private-label manufacturing with precision logo imprintingfor brand identityenhancement.
Functional Expansion
Flexible integration of modular terminals and adaptable configurationsto meet specialized requirements.
Global Shipping & Compliance
Express Air Freight: DHL/FedEx delivery to Europe/US within 5-7 business days.
FCL Ocean Shipping: Full container load transit in 30 days.
Customs Clearance Support: Full documentation package including Certificate of Origin and export declarations for seamless import compliance.
FAQ
1.How to choose the IP rating?
The ip68 underwater connector is ideal for outdoor use, including garden lights and buried lamps. It provides full dust protection and high-pressure water resistance for reliable outdoor wiring.
2. Professional Tools Required for Installation?
No, the ip68 underwater connector feature a screw-free design for fast, tool-free installation. Contact us for detailed instructions or technical support.
3.Can it be customized?
Yes, you can customize branding, packaging, multiple sizes, terminal positions (2P–12P), and materials (PA/PC). Minimum order quantity is 500 units.
4. International Compliance Certifications?
The ip68 underwater connector comply with ETL, ENEC, UKCA, NSW, SAA, CB CE and RoHs standards. Certification numbers and test reports available upon request.
5. Logistics & Packaging Details?
Ship globally via express, air, or sea. Expedited delivery within 15 days is available for major regions. Packaging provides full protection and supports palletized bulk transport.
6. After-Sales Service Policy?
Non-human damage: 30-day return/exchange policy with 3-year warranty.
Technical support: 24-hour response via Email or WhatsApp, including installation videos and diagrams.
Technical support: 24-hour response via Email or WhatsApp, including installation videos and diagrams.
