Model No: M684-D 2-3pin
Waterproof Electric Cable Connector 14-18 AWG Electric Wire Quick Splice Connector
Wiring Method: Screwless Type
IP Rating: IP68
Electrical Rating: 24A 450V
Pins: 2pin/3pin
Wire Range: 0.5-2.5mm²
Available Cable Diameter: 4-8mm/6-11mm
Applications: Underwater, Underground, Outdoor Lighting, Solar Systems, Security Systems
IP Rating: IP68
Electrical Rating: 24A 450V
Pins: 2pin/3pin
Wire Range: 0.5-2.5mm²
Available Cable Diameter: 4-8mm/6-11mm
Applications: Underwater, Underground, Outdoor Lighting, Solar Systems, Security Systems
minimum order :
1 piece
Subscribe to our Newsletter
Key Features

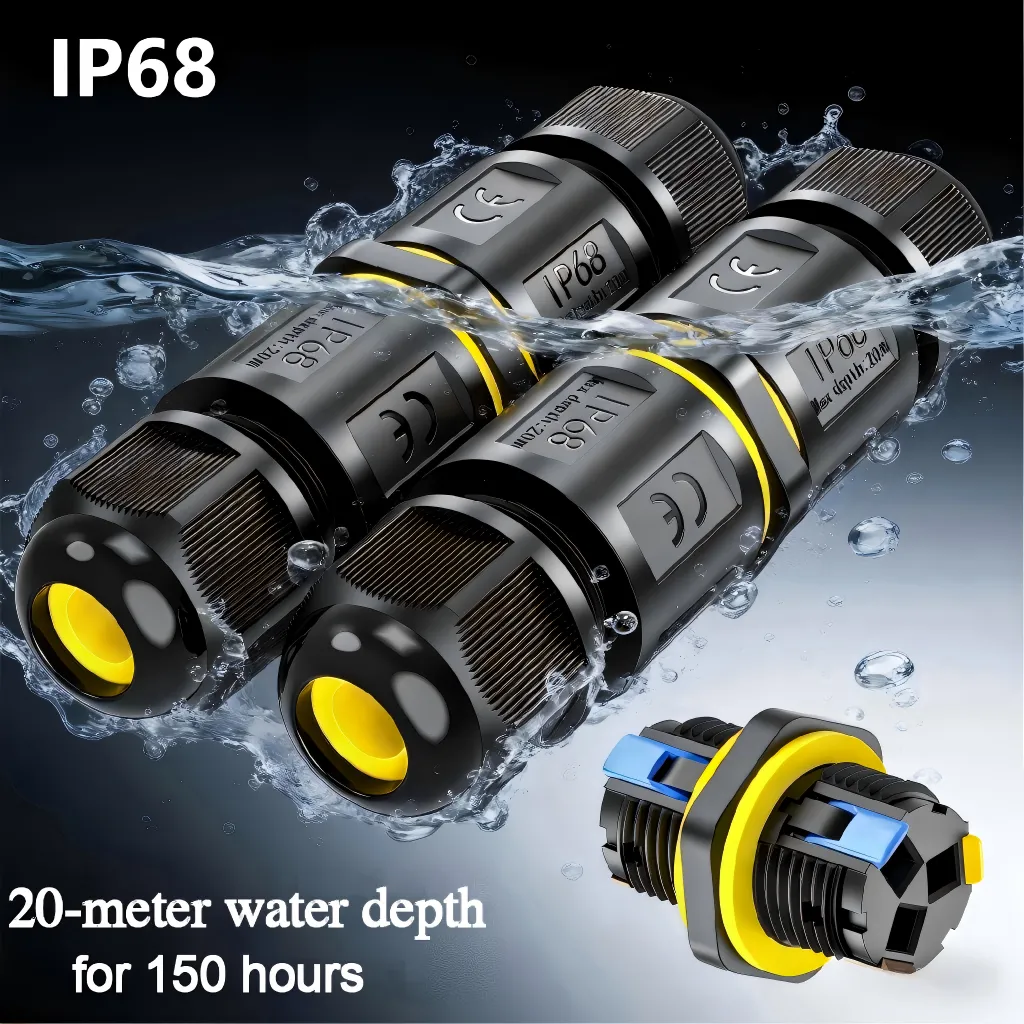

IP68 Waterproof Protection
M684-D waterproof electric cable connectors are engineered with full IP68 sealing, tested to 20m depth for 150 hours. These electric wire quick splice connector provide dustproof, waterproof, and UV-resistant durability, ensuring stable use in harsh outdoor environments where 18 awg wire connectors are commonly applied.
Fast Tool-Free Wiring
Designed with screwless terminals, these electric wire quick splice connectors allow rapid installation without tools. The structure enables efficient inline connections, ensuring waterproof electric cable connectors and 18 awg wire connectors setups can be completed in seconds.
Reliable 2-Way Inline Structure
As 2way inline connectors, M684-D waterproof electric cable connectors support stable in-out wiring paths. This design improves continuity in projects requiring multiple electric wire quick splice connectors and ensures consistent performance for 18 awg wire connector applications.
High Safety and Outdoor Durability
Made from UL94V-2 fire-retardant material, these waterproof electric cable connectors and electric wire quick splice connector withstand temperatures from -40℃ to +105℃. The housing resists impact, UV exposure, and aging for extended outdoor service life.
Certified for Global Compliance
M684-D waterproof electric cable connectors are fully certified with ENEC, CE, UKCA, ETL, NSW, CB, and RoHS, meeting international requirements for professional lighting and electrical installations.
Looking for reliable ip68waterproof electric cable connectors for your project?
Contact our team today for pricing, samples, or OEM customization. Send Inquiry Now
Contact our team today for pricing, samples, or OEM customization. Send Inquiry Now
Product Parameters
Item | Specification |
Model | M684-D |
IP Rating | IP68 |
Terminal | 2Pin/3Pin |
| Wiring Method | Screwless Type |
Contact Material | Copper |
Housing Material | Fire retardant UL94V-2 |
Rated Output | IEC/NSW: 24A 450VAC ETL: 10A 300VAC |
Rated Connecting Capacity | European: 0.5-2.5mm² Australian: 0.5-2.5mm² American: SJOW 14-18 AWG |
| Availble Cable Diameter | M20 (4-8mm/6-11mm) |
Working Temperature | -40℃ to+105℃ |
Waterproof Testing | 20m depth for 150 hours |
| Product Size | 94.19 * 24.96mm |
| Certification | ENEC, CE, UKCA, ETL, NSW, CB, RoHS |
| Applications | underwater, underground, outdoor electrical connection |
Need technical support or samples? We can help you choose the right ip68 waterproof electric cable connectors. Contact Us for Samples!
Certification
Installation Instructions
Step 1

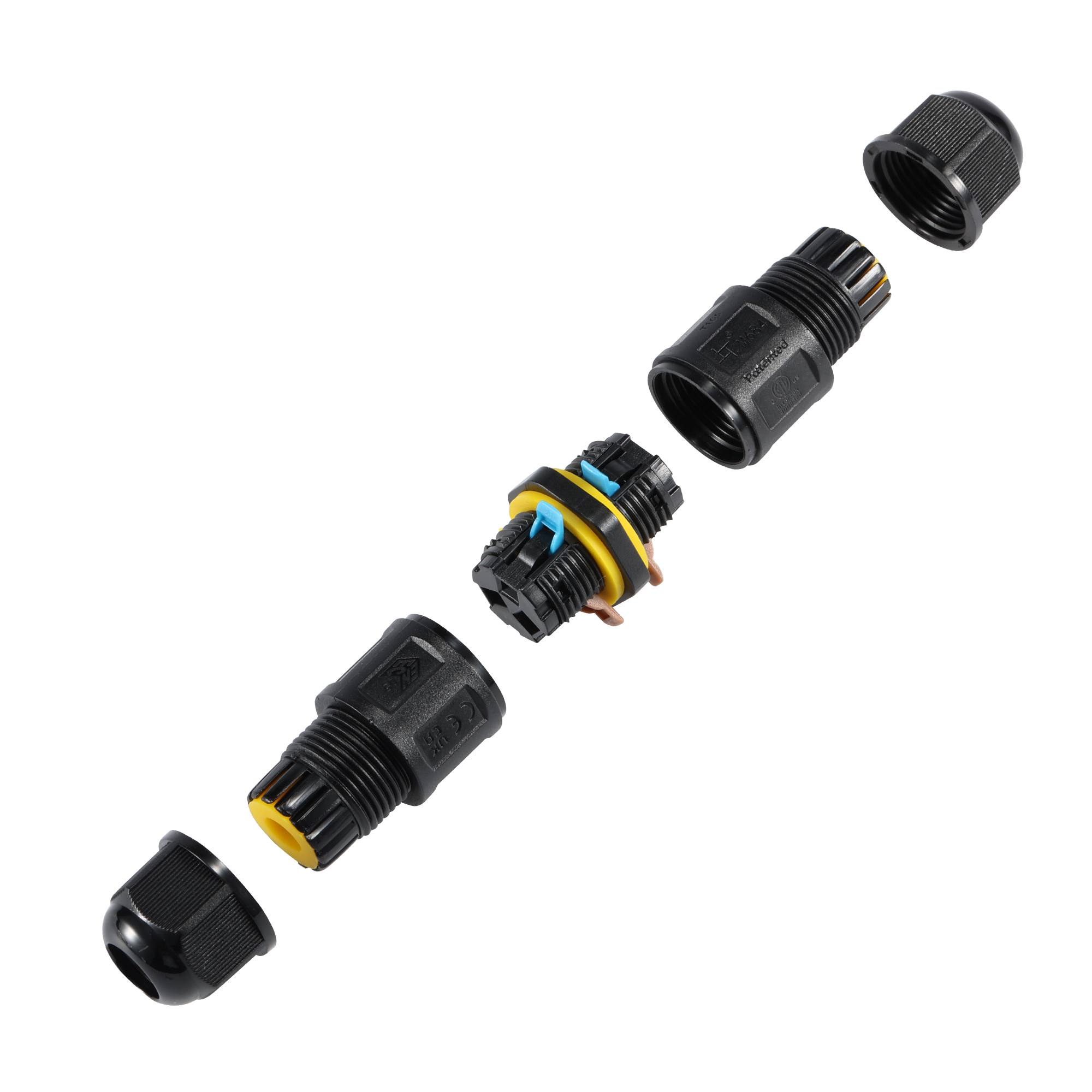

Unscrew the nut covers on both ends and remove the internal quick connector.
Step 2
Thread the cable through the nut body and lift the lever.
Step 3

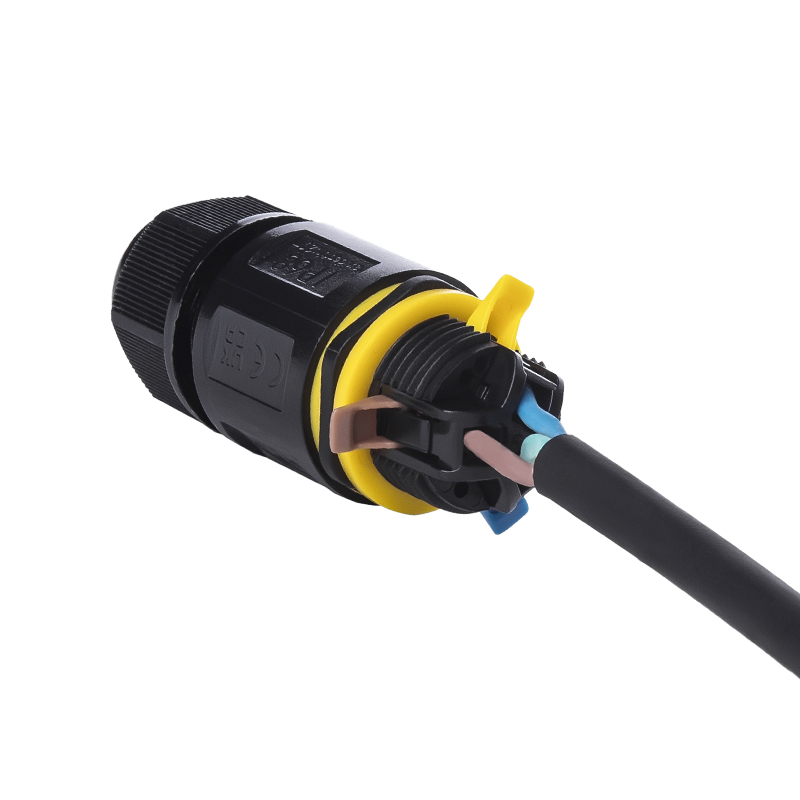

Insert the wires into the corresponding terminals and press the lever to lock the wires.
Step 4
Tighten the cable glands on both ends to complete the waterproof sealing.
Applications
Outdoor Lighting
Perfect for garden lights, landscape lighting, and backyard electrical systems.
Industrial Installations
Suitable for street lighting, stadium lighting, and outdoor electrical equipment.
Security Systems
Used in outdoor surveillance camera power connections and waterproof electrical boxes.
Solar Systems
Reliable connector solution for solar lighting and photovoltaic installations.
Company Profile
Production Capacity
Equipped with fully automated injection molding machines and assembly lines, delivering a monthly output of 500,000 units.CustomOEM/ODM solutions are supported to meet diverse client specifications.
Quality Assurance
Waterproof testing( 20m depth/150h), high-voltage resistance (2750V),and flame-retardant certification (V0/2 standards). All processes adhere to industrial safety and durability benchmarks.
Warehouse Storage
5000m² warehouse to keep enough materials in stock, ample warehousesize for efficient and speedy shipments, your orders deliveried promptly.
Our Services
Service Policy Overview
01 Pre-Sales Support
Technical specifications and product samples are guaranteed to be provided within 24 hours, ensuring rapid decision-making for clients.
02 Operational Response
Global 24x7 customer support delivers real-time tech and logistics assistance. Expedite orders ship in 7-10 days via automated production.
03 Post-Sales Warraty
A comprehensive 3-year warranty is offered, coveringnon human-induced defectsin materials or manufacturing.
Product Custiomization Solution
Custom Packaging
Diverse retail-ready designs tailored for supermarkets, hardware stores,and bulk distribution.
OEM Branding Services
Professional private-label manufacturing with precision logo imprintingfor brand identityenhancement.
Functional Expansion
Flexible integration of modular terminals and adaptable configurationsto meet specialized requirements.
Global Shipping & Compliance
Express Air Freight: DHL/FedEx delivery to Europe/US within 5-7 business days.
FCL Ocean Shipping: Full container load transit in 30 days.
Customs Clearance Support: Full documentation package including Certificate of Origin and export declarations for seamless import compliance.
FAQ
1.How to select the right IP rating?
The IP68 waterproof electric cable connectors is ideal for outdoor and landscape lighting, providing full dust and water protection.
2.Do I need tools for installation?
The waterproof electric cable connectors allows fast, tool-free installation without screws.
3.Are customization options available?
Yes, you can customize branding, packaging, sizes, terminal positions (2P–12P), and materials. Minimum order 500 units.
4.What certifications do you provide?
Our IP68 waterproof electric cable connectors meet ETL, ENEC, UKCA, NSW, SAA, CB, CE, and RoHS standards. Reports available on request.
5.Logistics & packaging details?
Global shipping via express/air/sea. Expedited delivery within 15 days tomajor regions. Comprehensive protective packaging with palletized bulktransport support.
6.After-sales service policy?
30-day return/exchange for non-human damage and 3-year warranty. Technical support available 24/7 with installation guides.
