Model No: GSPD5
Industrial Weatherproof Surge Protectors Outdoor Waterproof
minimum order :
1 piece
Subscribe to our Newsletter
Key Features
Reliable Series Protection
The weatherproof surge protector provides stable series protection for appliances, industrial gear, and communication devices.
Fast Surge Response
Reacting in under 25ns, this industrial surge protector helps safeguard sensitive electronics against sudden voltage spikes.
Outdoor-Ready Construction
Designed as outdoor waterproof surge protector, it features IP67 protection for demanding outdoor and humid environments.
Durable Flame-Resistant Build
The weatherproof surge protector offers UL94-V0 flame resistance and operates reliably from -40~+85°C.
Compact Installation Fit
With its compact size and secure terminals, the weatherproof surge protector integrates easily into various electrical enclosures.
Looking for reliable weatherproof surge protectors for your project?
Contact our team today for pricing, samples, or OEM customization. Send Inquiry Now
Contact our team today for pricing, samples, or OEM customization. Send Inquiry Now
Product Parameters
Item | GSPD5/10kV | GSPD5/20kV |
| Connection type | 3-wire, Series | 3-wire, Series |
| Operating Voltage(Uc) | 320VAC 50Hz | 320VAC 50Hz |
| Voltage Protection Level (Up) | L-N:≤1.2kV L-PE:≤1.3kV N-PE:≤1.3kV | L-N:≤1.4kV L-PE:≤1.5kV N-PE:≤1.5kV |
| Maximum Continous Voltage(Mcov) | 320V | 320V |
| Impulse Current (Uoc) | 10kV | 20kV |
| Nominal Discharge Current (In, 8/20µs) | 5kA | 10kA |
| Maximum Discharge Current (Imax, 8/20µs) | 10kA | 20kA |
| Response Time | ＜25ns | ＜25ns |
| Standard Leakage Current | ＜35μA | ＜35μA |
| Ingress Protection | IP67 | IP67 |
| Flame Rating | UL94-V0 | UL94-V0 |
| Operating Temperature Range | -40~+85°C | -40~+85°C |
| Dimensions (L×W×H) | 68*22*40mm | 68*22*40mm |
| Certification | TUV, ETL, CE, UKCA, CQC, RoHS | |
| Applications | Outdoor, underwater, and humid environments | |
Need technical support or samples? We can help you choose the right weatherproof surge protectors. Contact Us for Samples!
Certification

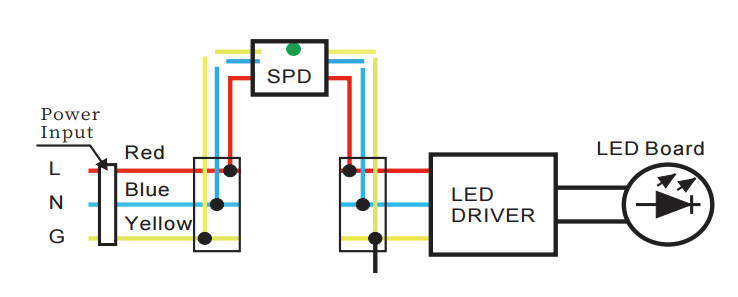

Product Applications
Company Profile
Production Capacity
Equipped with fully automated injection molding machines and assembly lines, delivering a monthly output of 500,000 units.CustomOEM/ODM solutions are supported to meet diverse client specifications.
Quality Assurance
All our products are strictly tested before shipment to ensure reliable performance and consistent quality. We are committed to complete testing on every single unit — to deliver protection you can trust.
Warehouse Storage
5000m² warehouse to keep enough materials in stock, ample warehousesize for efficient and speedy shipments, your orders deliveried promptly.
Our Services
Service Policy Overview
01 Pre-Sales Support
Technical specifications and product samples are guaranteed to be provided within 24 hours, ensuring rapid decision-making for clients.
02 Operational Response
Global 24x7 customer support delivers real-time tech and logistics assistance. Expedite orders ship in 7-10 days via automated production.
03 Post-Sales Warraty
A comprehensive 3-year warranty is offered, coveringnon human-induced defectsin materials or manufacturing.
Product Custiomization Solution
Custom Packaging
Diverse retail-ready designs tailored for supermarkets, hardware stores,and bulk distribution.
OEM Branding Services
Professional private-label manufacturing with precision logo imprintingfor brand identityenhancement.
Functional Expansion
Flexible integration of modular terminals and adaptable configurationsto meet specialized requirements.
Global Shipping & Compliance
Express Air Freight: DHL/FedEx delivery to Europe/US within 5-7 business days.
FCL Ocean Shipping: Full container load transit in 30 days.
Customs Clearance Support: Full documentation package including Certificate of Origin and export declarations for seamless import compliance.
FAQ
1.What applications is this weatherproof surge protector suitable for?
For outdoor LED lighting, security cameras, communication devices, industrial power supplies, and photovoltaic systems.
2.10kV or 20kV — how to choose?
Select 20kV for high-risk or elevated locations; 10kV weatherproof surge protector works for standard outdoor or indoor setups.
3. Series or parallel?
This weatherproof surge protector is series type, connected between power line and equipment.
4. What certifications does it have?
This weatherproof surge protector meets TUV, ETL, CE, UKCA, CQC, and RoHS certifications, making it suitable for global markets.
5.Logistics & packaging details?
Global shipping via express/air/sea. Expedited delivery within 15 days to major regions. Packaging is secure and supports pallet transport.
6.After-Sales Service Policy?
This parallel surge protector comes with a 1-year warranty; lightning-induced damage is not covered, but other defects are fully protected.
