Model No: GSPD1
IP67 LED Surge Protection Device Surge Protectors for LED Lights
minimum order :
1 piece
Subscribe to our Newsletter
Key Features
High Voltage Protection
The led surge protector safeguard LED systems from unexpected voltage spikes, keeping lighting safe and stable.
Fast Response for Sensitive LEDs
The led surge protection device reacts in less than 25ns to prevent damage to delicate LED circuits.
Durable Outdoor and Underwater Use
The surge protector for led lights features IP67 waterproof and UL94-V0 flame rating, ideal for harsh environments.
Space-Saving Installation
The led surge protector's small size makes it easy to install in tight spaces without affecting wiring.
Reliable Performance
With low leakage current and wide operating temperature range, led surge protector ensures long-term stable operation.
Looking for reliable led surge protectors for your project?
Contact our team today for pricing, samples, or OEM customization. Send Inquiry Now
Contact our team today for pricing, samples, or OEM customization. Send Inquiry Now
Product Parameters
Item | GSPD1/10kV | GSPD1/20kV |
| Connection type | 3-wire, Series/Parallel | 3-wire, Series/Parallel |
| Operating Voltage(Uc) | 320VAC 50Hz | 320VAC 50Hz |
| Voltage Protection Level (Up) | L-N:≤1.25kV L-PE:≤1.5kV N-PE:≤1.5kV | L-N:≤1.4kV L-PE:≤1.5kV N-PE:≤1.5kV |
| Maximum Continous Voltage(Mcov) | 320V | 320V |
| Impulse Current (Uoc) | 10kV | 20kV |
| Nominal Discharge Current (In, 8/20µs) | 5kA | 10kA |
| Maximum Discharge Current (Imax, 8/20µs) | 10kA | 20kA |
| Response Time | ＜25ns | ＜25ns |
| Standard Leakage Current | ＜35μA | ＜35μA |
| Ingress Protection | IP67 | IP67 |
| Flame Rating | UL94-V0 | UL94-V0 |
| Operating Temperature Range | -40~+85°C | -40~+85°C |
| Dimensions (L×W×H) | 65*14*24mm | 65*14*24mm |
| Certification | TUV, ETL, CE, UKCA, CQC, RoHS | |
| Applications | Outdoor, underwater, and humid environments | |
Need technical support or samples? We can help you choose the right led surge protectors. Contact Us for Samples!

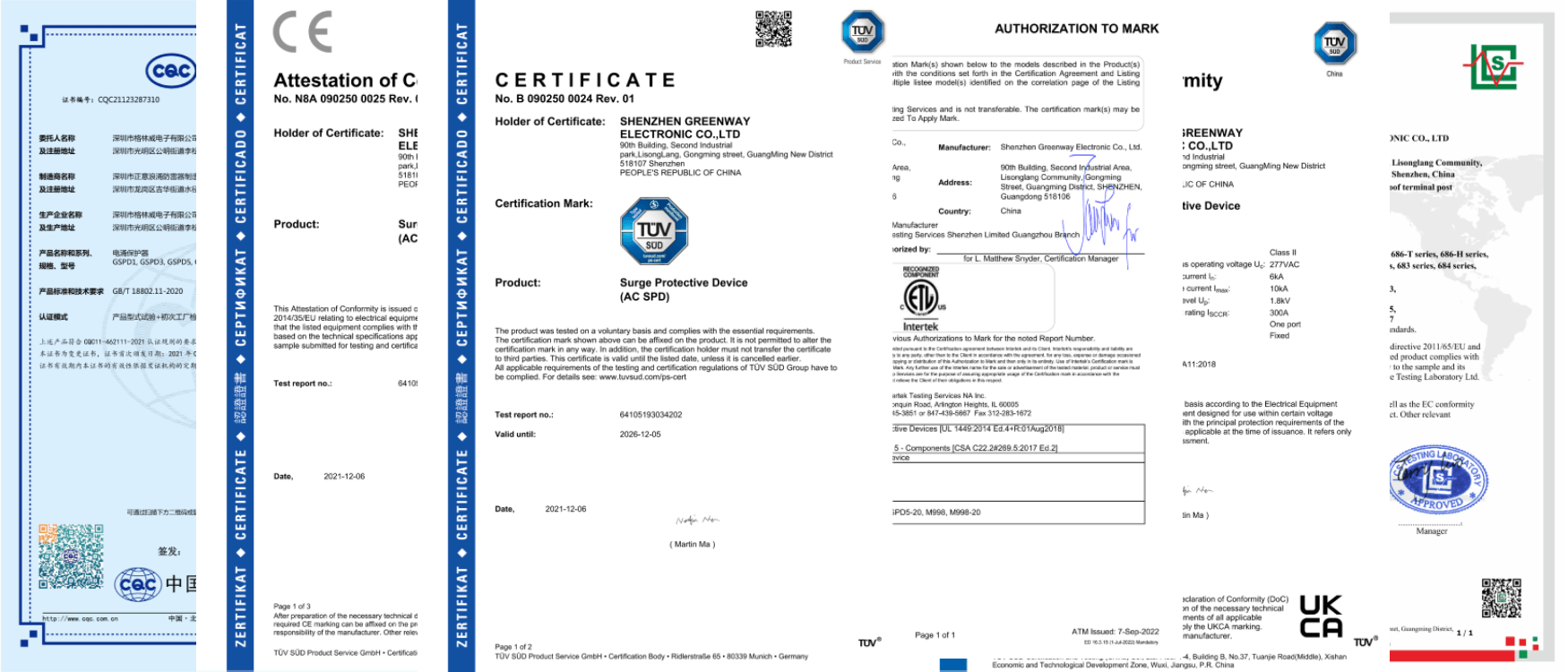

Certifications

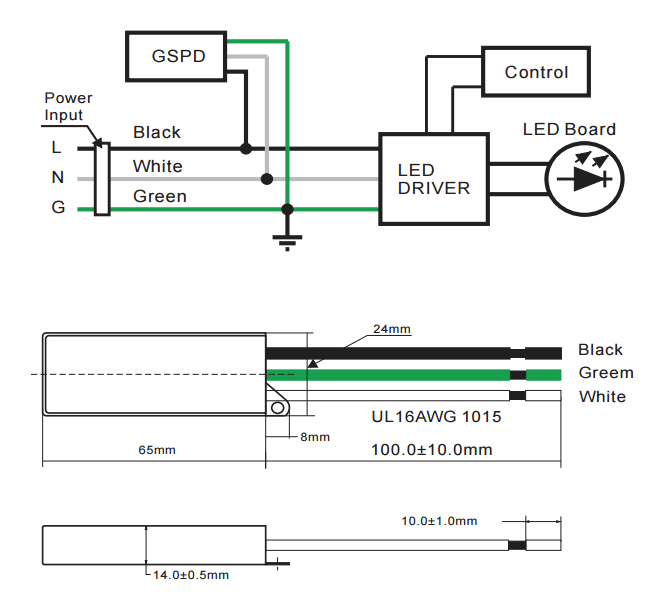

Product Applications
Company Profile
Production Capacity
Equipped with fully automated injection molding machines and assembly lines, delivering a monthly output of 500,000 units.CustomOEM/ODM solutions are supported to meet diverse client specifications.
Quality Assurance
All our products are strictly tested before shipment to ensure reliable performance and consistent quality. We are committed to complete testing on every single unit — to deliver protection you can trust.
Warehouse Storage
5000m² warehouse to keep enough materials in stock, ample warehousesize for efficient and speedy shipments, your orders deliveried promptly.
Our Services
Service Policy Overview
01 Pre-Sales Support
Technical specifications and product samples are guaranteed to be provided within 24 hours, ensuring rapid decision-making for clients.
02 Operational Response
Global 24x7 customer support delivers real-time tech and logistics assistance. Expedite orders ship in 7-10 days via automated production.
03 Post-Sales Warraty
A comprehensive 3-year warranty is offered, coveringnon human-induced defectsin materials or manufacturing.
Product Custiomization Solution
Custom Packaging
Diverse retail-ready designs tailored for supermarkets, hardware stores,and bulk distribution.
OEM Branding Services
Professional private-label manufacturing with precision logo imprintingfor brand identityenhancement.
Functional Expansion
Flexible integration of modular terminals and adaptable configurationsto meet specialized requirements.
Global Shipping & Compliance
Express Air Freight: DHL/FedEx delivery to Europe/US within 5-7 business days.
FCL Ocean Shipping: Full container load transit in 30 days.
Customs Clearance Support: Full documentation package including Certificate of Origin and export declarations for seamless import compliance.
FAQ
1.What applications is this led surge protector suitable for?
For outdoor LED lighting, security cameras, communication devices, industrial power supplies, and photovoltaic systems.
2.10kV or 20kV — how to choose?
Select 20kV for high-risk or elevated locations; 10kV led surge protector works for standard outdoor or indoor setups.
3. Series or parallel?
This led surge protector both types available. Series-type goes between line and device; parallel-type connects to L/N/PE. Contact us for selection.
4. What certifications does it have?
This led surge protector meets TUV, ETL, CE, UKCA, CQC, and RoHS certifications, making it suitable for global markets.
5.Logistics & packaging details?
Global shipping via express/air/sea. Expedited delivery within 15 days to major regions. Packaging is secure and supports pallet transport.
6.After-Sales Service Policy?
This led surge protector comes with a 1-year warranty; lightning-induced damage is not covered, but other defects are fully protected.
