Model No: M686-5B
Outdoor Electrical Junction Box for Outdoor Use
IP Rating: IP68
Electrical Rating: 24A 450V
Wire Range: 0.5-2.5mm²
Available Cable Diameter: 5*M20(4-8mm/6-11mm)
Applications: Underwater, Underground, Outdoor Lighting, Solar Systems, Security Systems
Electrical Rating: 24A 450V
Wire Range: 0.5-2.5mm²
Available Cable Diameter: 5*M20(4-8mm/6-11mm)
Applications: Underwater, Underground, Outdoor Lighting, Solar Systems, Security Systems
minimum order :
1 piece
Subscribe to our Newsletter
Key Features
Reliable IP68 Waterproof Protection
The outdoor electrical junction box offers excellent waterproof and dustproof sealing, keeping electrical systems safe in outdoor, underground, or wet environments.
Certified Global Standards
Approved by ENEC, CE, UKCA, ETL, and RoHS, the outdoor electrical junction box meets strict international safety and quality standards for long‑term reliability.
Durable Flame‑Resistant Housing
Made from UL94V‑2 fire‑retardant material, the outdoor electrical junction box provides strong durability, preventing heat damage and corrosion.
Flexible 5‑Way Configuration
As a 5‑way outdoor electrical junction box, it allows multiple cable entries with optional screw‑lock or screwless terminals for quick and easy installation.
Ideal for Lighting and Power Systems
Perfect as an electrical outdoor junction box and junction box for outdoor use, combining IP68 waterproof protection and certified safety for lighting, garden, and power setups.
Looking for a reliable outdoor electrical junction boxes for your lighting project?
Contact our team today for pricing, samples, or OEM customization. Send Inquiry Now
Contact our team today for pricing, samples, or OEM customization. Send Inquiry Now
Product Parameters
Item | Specification |
Model | M686-5B |
IP Rating | IP68 |
Housing Material | Fire retardant UL94V-2 |
| Terminal | PA10 terminal or other terminals available |
Rated Output | IEC/NSW: 24A 450VAC ETL: 10A 300VAC |
Rated Connecting Capacity | European: 0.5-2.5mm² Australian: 0.5-2.5mm² American: SJOW 14-18 AWG |
| Available Cable Diameter | 5*M20 (4-8mm/6-11mm) |
Working Temperature | -40℃~+105℃ |
Waterproof Testing | 10m depth for 150 hours |
| Product Size | Outer: 162*108*39mm Inter: 93*40*32mm |
| Certification | ENEC, CE, UKCA, ETL, NSW, CB, RoHS |
| Applications | underwater, underground, outdoor electrical connection |
Need technical support or samples? We can help you choose the right outdoor electrical junction boxes. Contact Us for Samples!
Certification
Applications

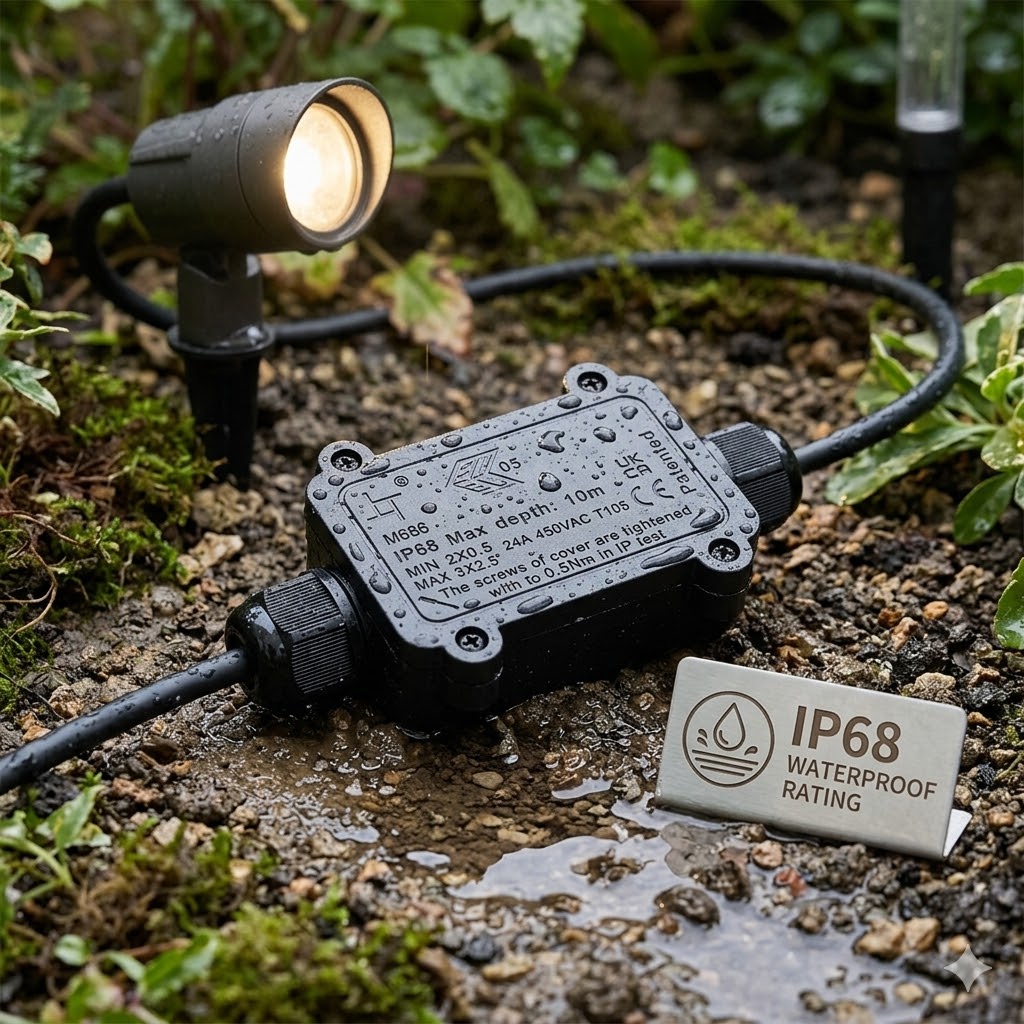

Outdoor Lighting
Perfect for garden lights, landscape lighting, and backyard electrical systems.
Industrial Installations
Suitable for street lighting, stadium lighting, and outdoor electrical equipment.
Security Systems
Used in outdoor surveillance camera power connections and waterproof electrical boxes.
Solar Systems
Reliable connector solution for solar lighting and photovoltaic installations.
Company Profile
Production Capacity
Equipped with fully automated injection molding machines and assembly lines, delivering a monthly output of 500,000 units.CustomOEM/ODM solutions are supported to meet diverse client specifications.
Quality Assurance
Waterproof testing( 10m depth for 150h), high-voltage resistance (2750V),and flame-retardant certification (V0/2 standards). All processes adhere to industrial safety and durability benchmarks.
Warehouse Storage
5000m² warehouse to keep enough materials in stock, ample warehousesize for efficient and speedy shipments, your orders deliveried promptly.
Our Advantages
Service Policy Overview
01 Pre-Sales Support
Technical specifications and product samples are guaranteed to be provided within 24hours, ensuring rapid decision-making for clients.
02 Operational Response
Global 24x7 customer support delivers real-time tech and logistics assistance. Expedite orders ship in 7-10 days via automated production.
03 Post-Sales Warraty
A comprehensive 3-year warranty is offered, coveringnon human-induced defectsin materials or manufacturing.
Product Custiomization Solution
Custom Packaging
Diverse retail-ready designs tailored for supermarkets, hardware stores,and bulk distribution.
OEM Branding Services
Professional private-label manufacturing with precision logo imprintingfor brand identityenhancement.
Functional Expansion
Flexible integration of modular terminals and adaptable configurationsto meet specialized requirements.
Global Shipping & Compliance
Express Air Freight: DHL/FedEx delivery to Europe/US within 5-7 business days.
FCL Ocean Shipping: Full container load transit in 30 days.
Customs Clearance Support: Full documentation package including Certificate of Origin and export declarations for seamless import compliance.
FAQ
1.What's the minimum order quantity for outdoor electrical junction boxes?
The standard MOQ is 500 pcs. New buyers can request a smaller trial order.
2.Can the terminal type be customized?
Yes. Choose screw terminals or tool-free quick connectors to suit your project needs.
3.Do you provide certification documents for outdoor electrical junction boxes?
Yes. ENEC, CE, UKCA, ETL, CB, and RoHS certificates and test reports are available upon request.
4.What's the lead time for mass production?
Normally 15–25 days depending on quantity. Urgent orders can be expedited.
5. Do you support OEM and custom packaging?
Yes. OEM logos, customized cartons, and label designs are all available.
